Aluminium Step Tile Roll Forming Machine
Aluminium Step Tile Roll Forming Machine

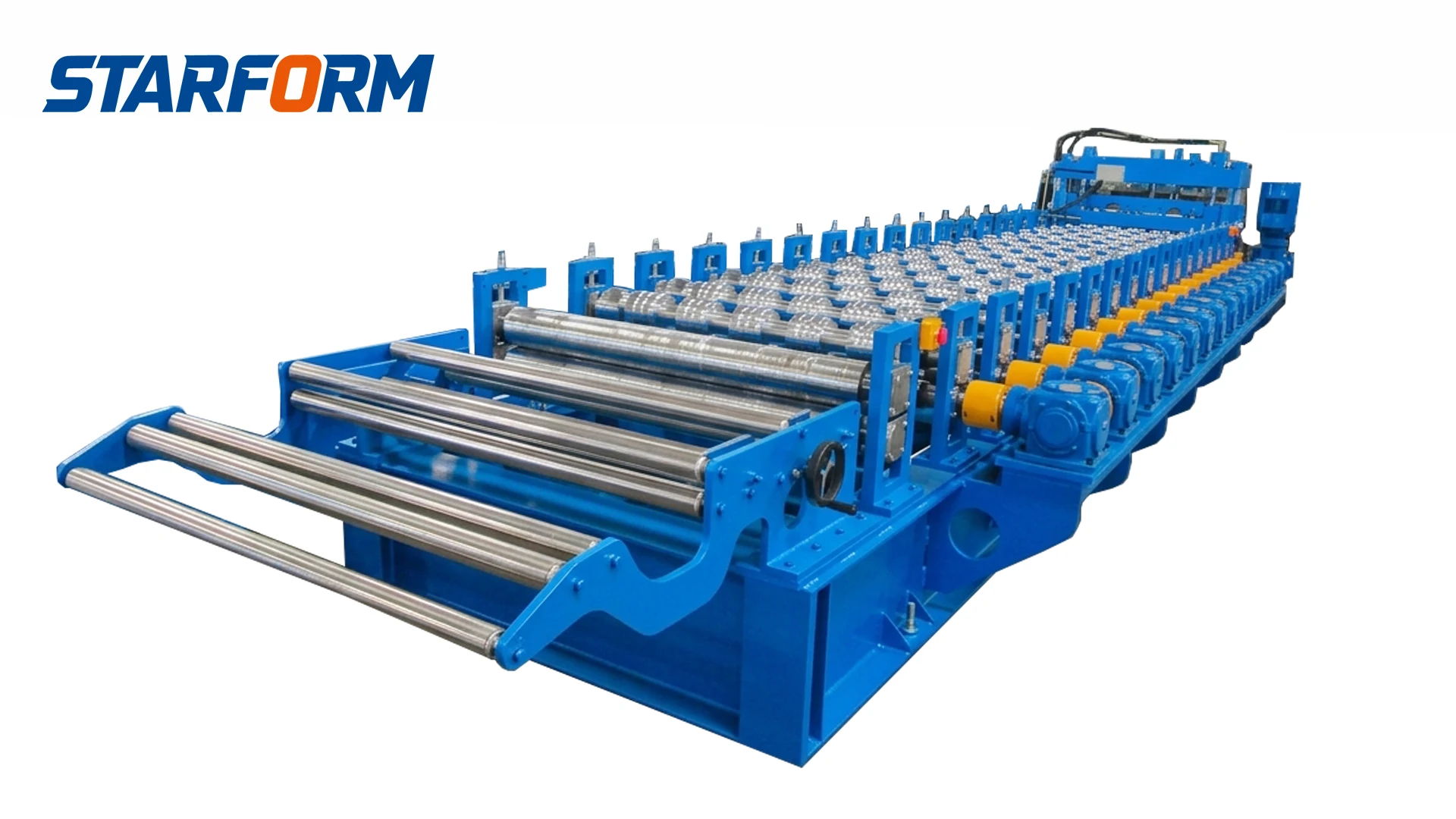

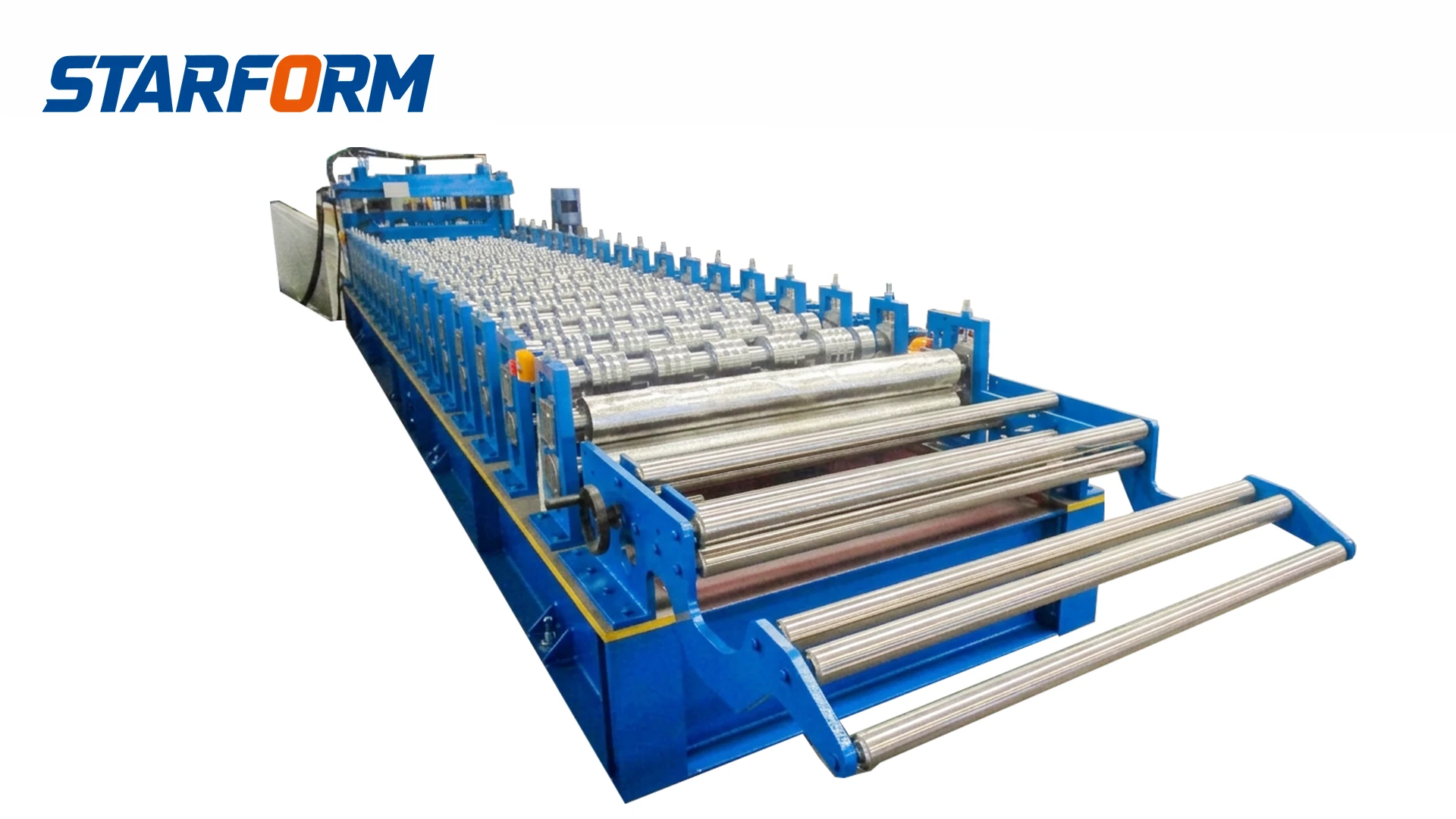

The Aluminium Step Tile Roll Forming Machine from Starform Machinery is a specialized roll forming system designed to produce high-quality aluminium step tiles for modern roofing and wall cladding applications. With over 25 years of industry experience, Starform Machinery has earned a reputation for delivering reliable, precision-engineered roll forming equipment to clients worldwide.
The Aluminium Step Tile Roll Forming Machine from Starform Machinery is a specialized roll forming system designed to produce high-quality aluminium step tiles for modern roofing and wall cladding applications. With over 25 years of industry experience, Starform Machinery has earned a reputation for delivering reliable, precision-engineered roll forming equipment to clients worldwide.

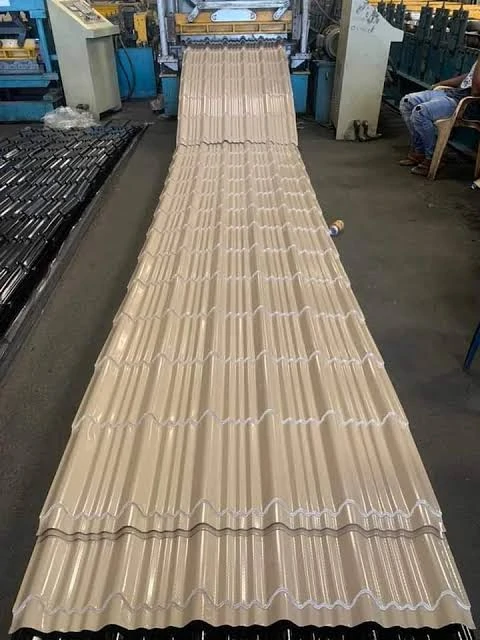

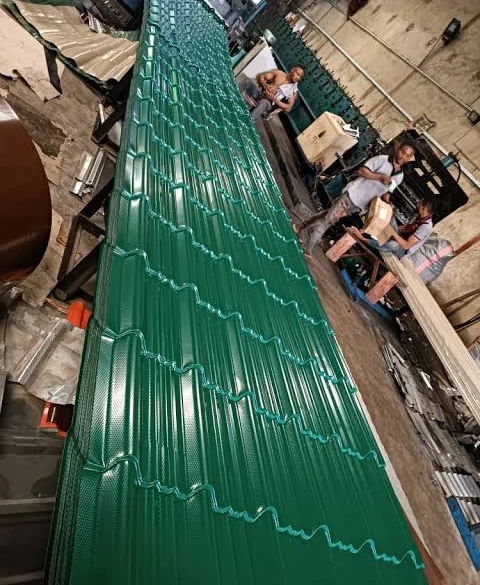

This machine transforms aluminium coils into beautifully profiled step tiles with consistent shape, smooth edges, and excellent dimensional accuracy. Whether you are a roofing contractor, building material supplier, or construction company, Starform Machinery provides the technology you need to produce durable, aesthetically appealing aluminium step tiles efficiently and cost-effectively.

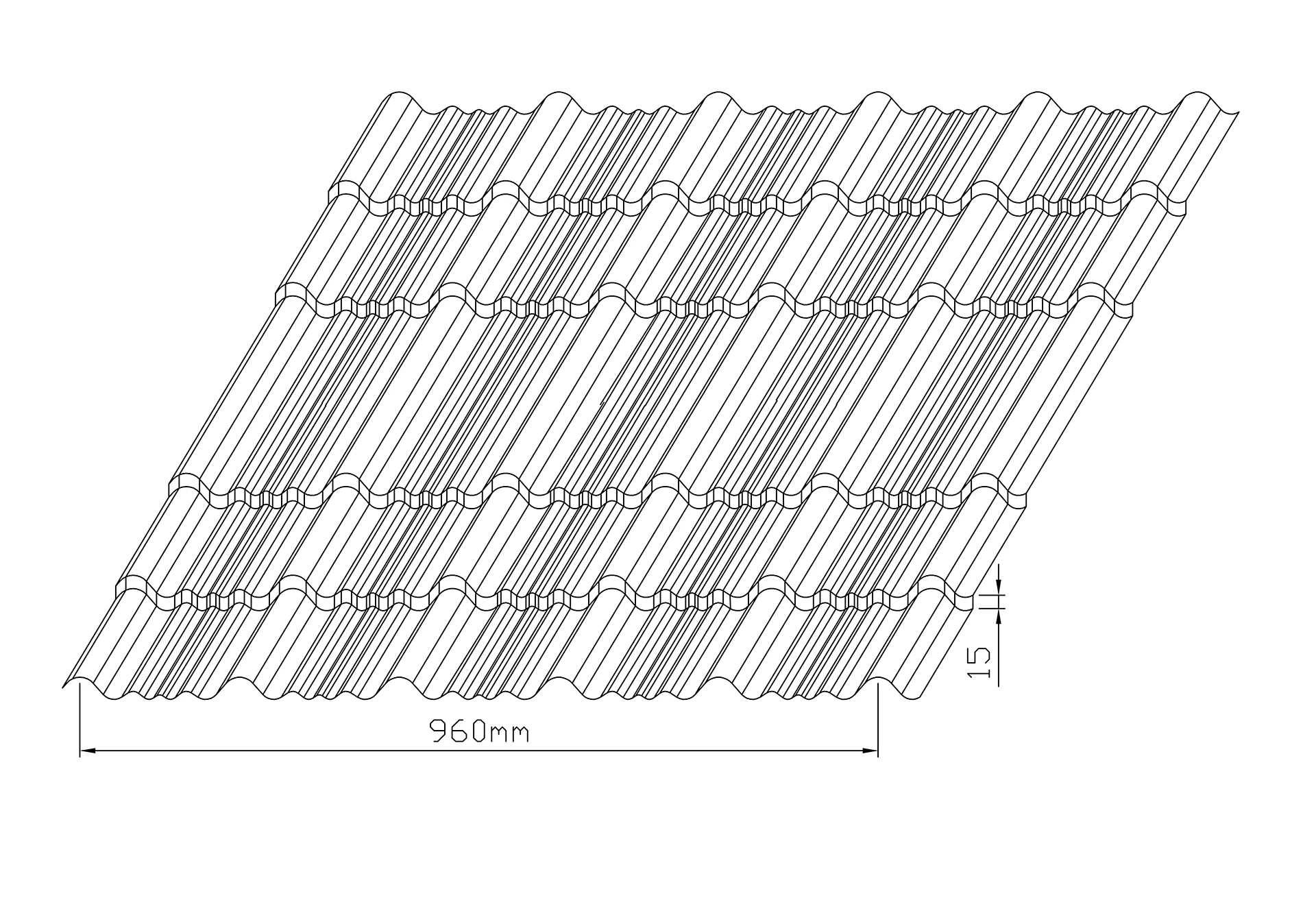

Step tile profile drawing
Key Features of Starform Aluminium Step Tile Roll Forming Machine
| Feature | Description |
| Precision Roll Forming | Advanced roller design ensures consistent profile shape with tight tolerances |
| High-Speed Production | Forming speed up to 15-18 m/min for maximum productivity |
| Versatile Material Compatibility | Processes aluminium, galvanized steel, PPGI, and PPGL coils |
| Durable Construction | Heavy-duty steel plate welded structure for long-term stability |
| PLC Control System | User-friendly interface with precise parameter adjustment |
| Hydraulic Cutting System | Clean, burr-free cuts with consistent length accuracy |
| Customizable Options | Tailored to your specific profile drawings and production requirements |
Technical Specifications
| Parameter | Specification |
| Machine Type | Aluminium Step Tile Roll Forming Machine |
| Suitable Material | Aluminium Coil, PPGI, PPGL, Galvanized Steel |
| Material Thickness | 0.4 – 0.5 mm (customizable) |
| Coil Width | 1200 mm |
| Yield Strength | 235 MPa |
| Production Speed | 5-6 m/min (depending on configuration) |
| Forming Stations | 16 – 20 stations (customizable per profile) |
| Main Motor Power | 7.5 kW |
| Cutting System | Hydraulic Post Cut (Servo Tracking Cutter optional) |
| Roller Material | 45# Forged Steel, Chrome Plated |
| Shaft Material | 45# Steel, precision-ground |
| Control System | PLC with Touchscreen Interface |
| Voltage | 380V / 50Hz / 3 Phase (customizable) |
| Machine Color | Industrial Blue (customizable) |
| Optional Upgrades | Hydraulic Decoiler, Gearbox Drive, Auto Stacker, Siemens PLC |

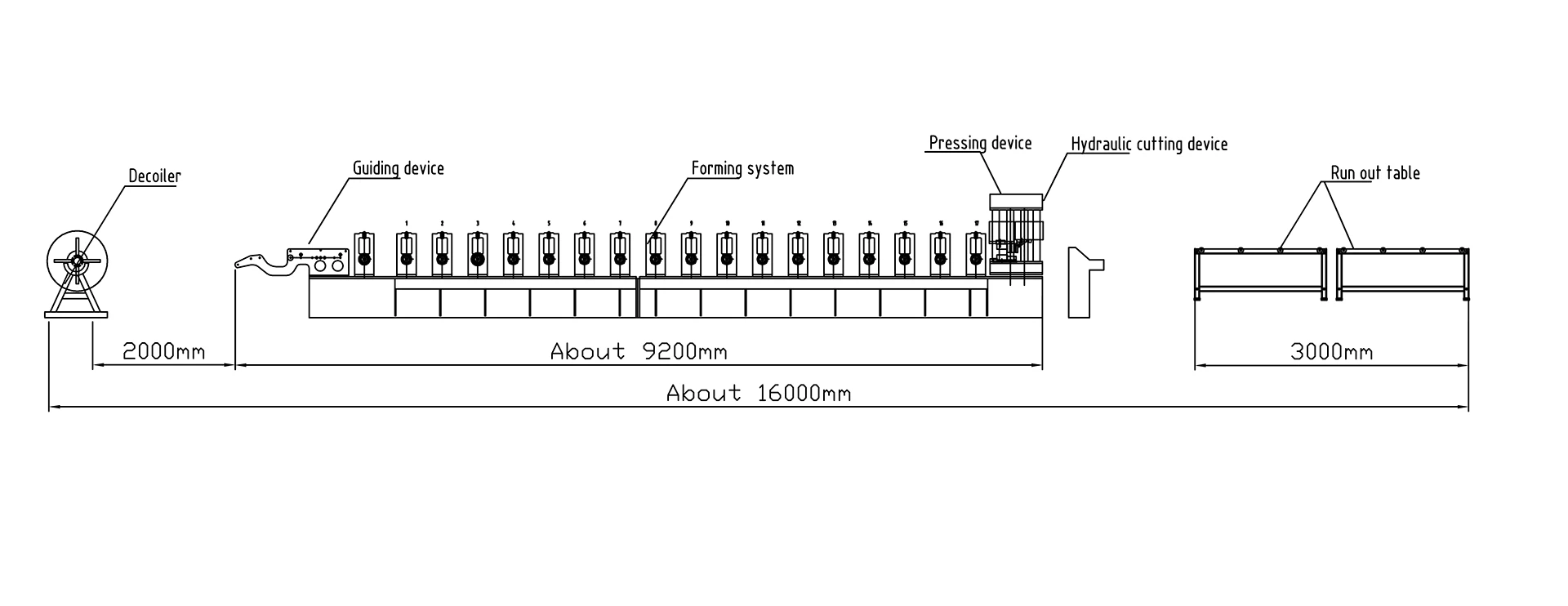

Production Line Overview
Decoiler ➔ Guided Feeding & Pre-cutting ➔ Roll Forming System ➔ Roll forming ➔ Stepping ➔Post-Cutting ➔ Run-out Table
Applications
The Aluminium Step Tile Roll Forming Machine from Starform Machinery produces step tiles widely used in:

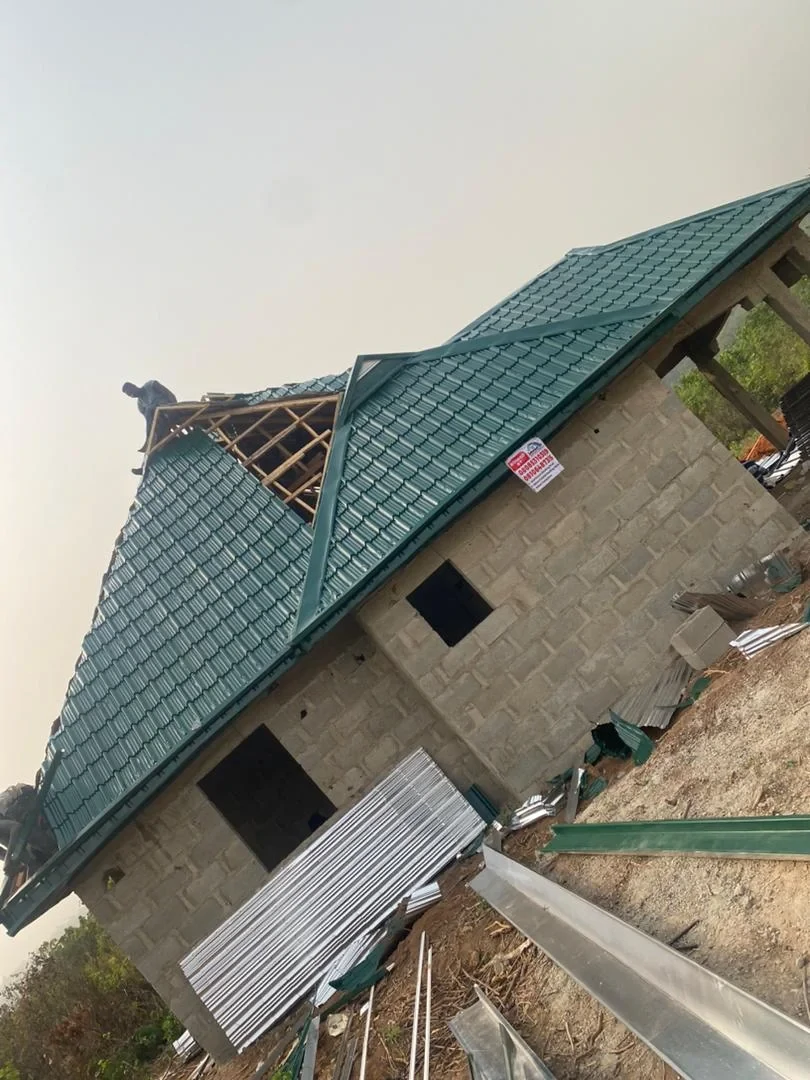

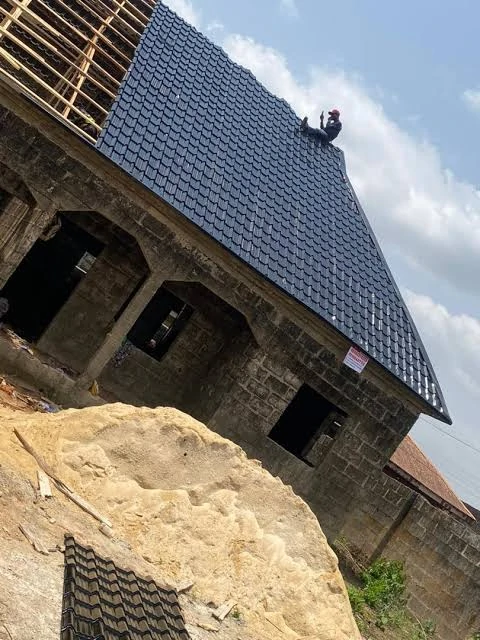

Residential Roofing – Durable and aesthetically pleasing roof tiles for homes
Commercial Buildings – Step tile cladding for offices, shopping centers, and hotels
Industrial Facilities – Roofing and wall panels for warehouses and factories
Architectural Cladding – Decorative step tile profiles for modern building designs
Renovation Projects – Lightweight aluminium step tiles for roof replacement
Aluminium step tiles offer excellent corrosion resistance, lightweight properties, and long service life – making them the preferred choice for roofing applications in coastal and humid environments.
Why Choose Starform Machinery?
| Advantage | Description |
| 25+ Years of Experience | Decades of expertise in roll forming machine manufacturing |
| Factory-Direct Pricing | Competitive pricing without middleman markups |
| Customization Capability | Machines tailored to your specific profile drawings |
| Quality Assurance | Strict quality control at every production stage |
| Global Export Experience | Machines exported to Africa, Middle East, Southeast Asia, and beyond |
| Comprehensive After-Sales Support | Installation guidance, training, and spare parts supply |
Starform Machinery is committed to providing high-performance, durable, and cost-effective roll forming solutions. Our aluminium step tile roll forming machines are built to deliver consistent quality, reduce production waste, and maximize your return on investment.
Frequently Asked Questions (FAQ)
1. What materials can the Aluminium Step Tile Roll Forming Machine process?
The machine can process aluminium coils, galvanized steel, PPGI (pre-painted galvanized iron), and PPGL (pre-painted galvalume) coils with thickness ranging from 0.4mm to 0.5mm.
2. Can the machine be customized for different step tile profiles?
Yes. Starform Machinery offers full customization based on your profile drawings, including forming station configuration, roller design, and cutting system.
3. What is the production speed of this machine?
The standard forming speed ranges from 5-6 meters per minute, depending on the material thickness and profile complexity.
4. What is the roller material and how long do they last?
The rollers are made of 45# forged steel with chrome plating, providing excellent wear resistance and long service life. With proper maintenance, they can last for many years of continuous production.
5. What after-sales support does Starform Machinery provide?
Starform Machinery provides installation guidance, operational training, troubleshooting support, and spare parts supply. Our technical team is available to ensure your machine runs smoothly.
6. Do you offer optional upgrades for this machine?
Yes. Optional upgrades include hydraulic decoiler, gearbox drive system, servo tracking cutter, Siemens PLC, and auto stacker.
7. What certifications does Starform Machinery hold?
Our machines are manufactured to international quality standards and can be provided with CE certification upon request.
8. How long is the delivery time?
Delivery time typically ranges from 30 to 60 days after deposit, depending on customization requirements and production schedule.
9. Can I visit the Starform Machinery factory?
Yes. We welcome clients to visit our factory in Hangzhou, China, to inspect our production facilities and witness machine testing firsthand.
10. Do you provide spare parts for this machine?
Yes. Starform Machinery maintains a comprehensive inventory of spare parts to ensure minimal downtime for your production line.
