cut to length line 3.0x1250mm
cut to length line 3.0x1250mm

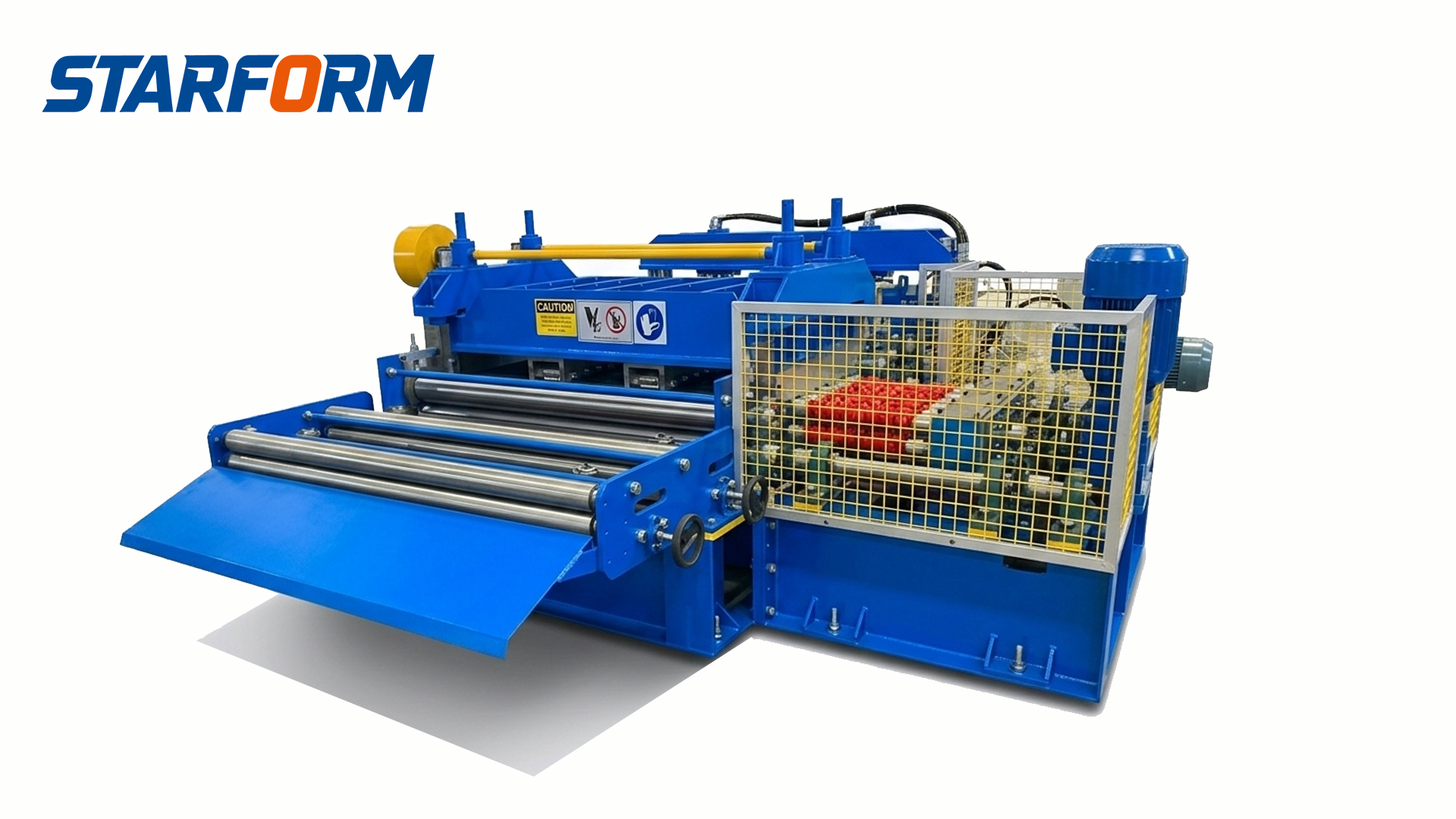

This Cut to Length (CTL) line is a heavy-duty production system designed for processing steel coils into precision-cut flat sheets. The model is specifically engineered to handle material thickness up to 3.0mm with a maximum width of 1300mm, making it suitable for medium-thickness metal processing applications.
This Cut to Length (CTL) line is a heavy-duty production system designed for processing steel coils into precision-cut flat sheets. The model is specifically engineered to handle material thickness up to 3.0mm with a maximum width of 1300mm, making it suitable for medium-thickness metal processing applications.
Key Technical Specifications
| Material Thickness | Material Width | Coil Weight Capacity |
| 0.3 – 3.0 mm | Max 1300 mm | 10 – 15 tons (configurable) |
| Coil Inner Diameter | Cutting Length Range | Length Accuracy |
| Φ508 mm / Φ610 mm | 500 – 6000 mm | ±0.5 mm |
| Line Speed | Shearing Type | Control System |
| 15-30 m/min | Hydraulic or Pneumatic Guillotine | PLC (Programmable Logic Controller) |
Key Advantages
High Precision: Achieves tight length accuracy of ±0.5mm, ensuring consistent product quality.
Versatile Material Handling: Capable of processing various materials including cold-rolled steel, galvanized steel, and stainless steel.
Automation: PLC-controlled system enables one-person operation, significantly improving efficiency.
Surface Protection: Designed to prevent scratching of the material surface during processing.
Applications
This 3.0×1300 CTL line is widely used in industries requiring precise sheet metal blanks, such as:
Vehicle manufacturing
Home appliance production
Switchgear and electrical cabinets
Steel structure fabrication
Stainless steel kitchenware manufacturing
General metal fabrication
