B Deck roll forming machine is engineered to produce high-quality 1.5″ B Profile steel floor and roof deck panels with exceptional precision and efficiency. This profile, widely used in commercial and industrial construction for composite floor slabs, roof decks, and mezzanine systems, is characterized by its 1.5-inch rib height and 36-inch standard coverage width – delivering an excellent strength-to-weight ratio that architects and contractors rely on.

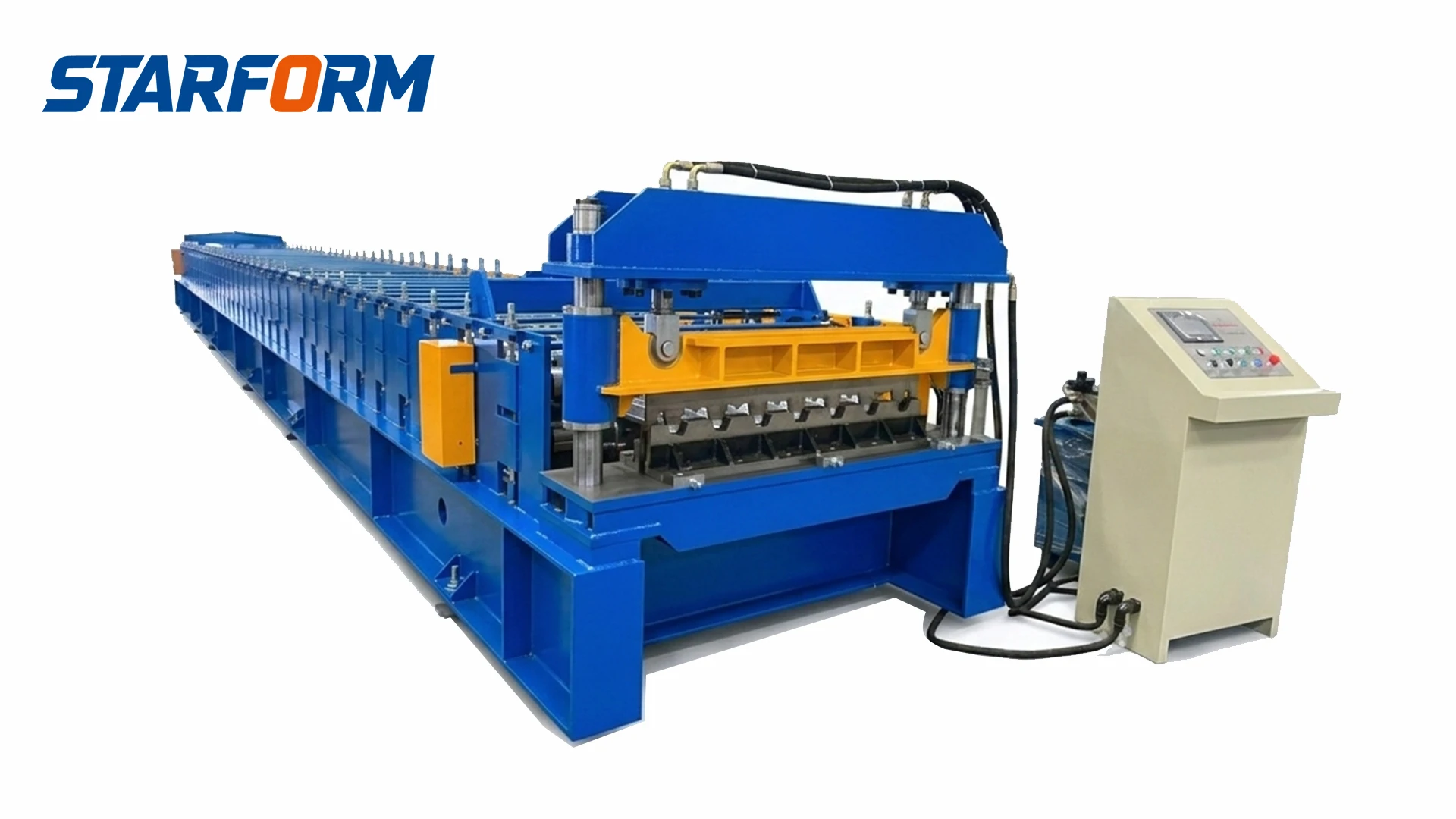

Star roll forming machinery- our steel deck roll forming line is built for demanding production environments and offers:

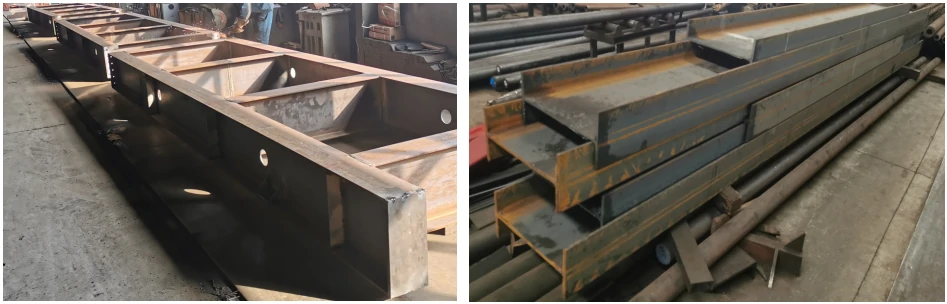

• Stable 450H-beam frame: All-welded H-beam structure ensures no deflection, even under full load.

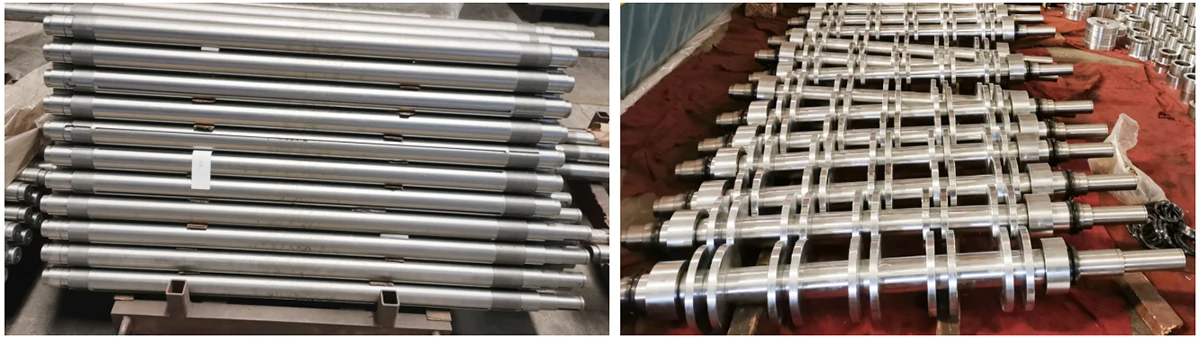

• Hardened 45# steel shafts: Diameter 80mm, wear-resistant and precision-ground for reliable rotation.

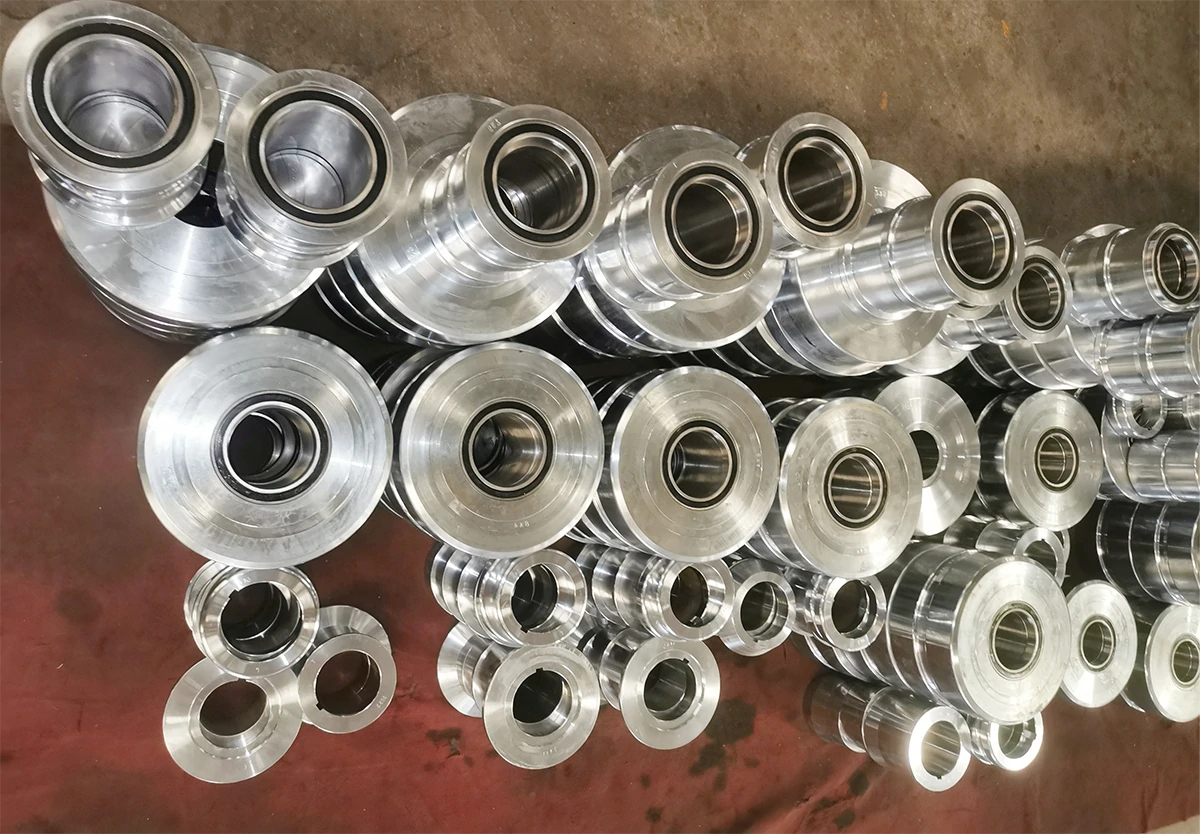

• Sealed bearings on all rollers: Reduce friction, extend roller life, and lower maintenance requirements.



• 34 forming stations: Precision-ground rollers ensure consistent profile geometry across the entire coil length.

• Automatic hydraulic cutting: High-speed, burr-free shearing with length accuracy of ±1mm.

• Mitsubishi PLC control system: Touchscreen interface for easy parameter adjustment, fault diagnosis, and production data tracking.

• Optional embossing roller: Creates a textured surface on the deck to improve concrete bonding for composite floor applications.

Capable of processing galvanized steel (GI), pre-painted steel (PPGI), and Galvalume (GL) coils from 16 to 22 gauge, our metal deck forming machine delivers production speeds of up to 15-20 meters per minute.

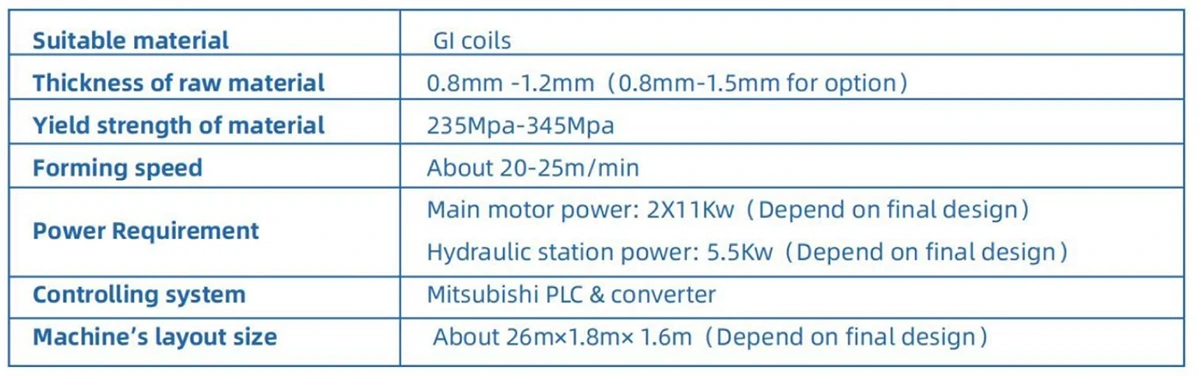

Main Technical parameter

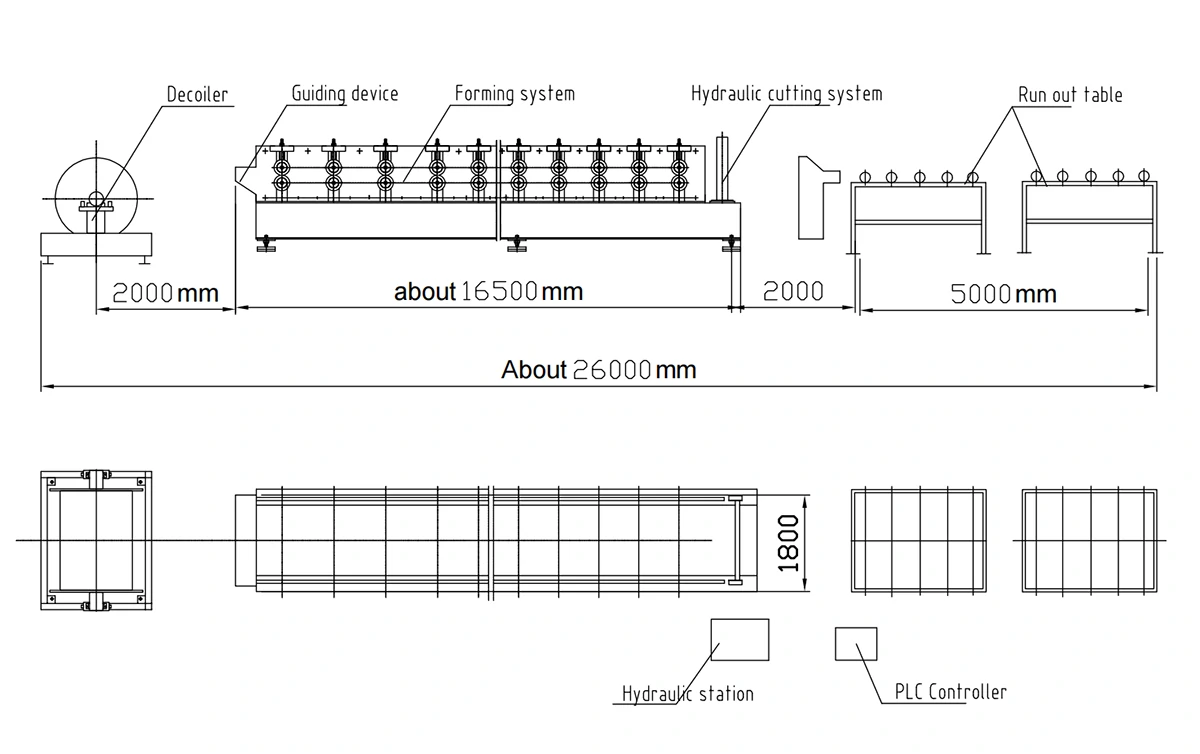

Whole metal decking forming line layout drawing

B Deck Panels Applications

B deck panel production line – FAQ

Q1: How long does it take to learn machine operation?
A: Most technicians become confident in operating the machine within 1-3days of supervised practice. The PLC touchscreen interface is designed to be user friendly, reducing the learning curve.

Q2: Can one person operate the machine alone?
A: Yes, with the fully automated PLC control system, one operator can manage the entire production line after proper training.

Q3: How much space is needed to install the machine?
A: Installation space requirements depend on the machine configuration and line length, Whole line approximately 25 meters. A complete floor deck roll forming line typically includes a decoiler, feeding system, forming section, cutting system, and output table. We provide detailed layout drawings before shipment.

Q4: Do you provide installation and commissioning support?
A: Yes. We offer remote installation guidance and commissioning via online video support. Our engineers can also be dispatched on site for large orders or complex installations.
