What is Sigma Channel Roll Forming Machine?

A sigma channel roll forming machine is a specialized set of industrial equipment designed to manufacture sigma-shaped (Σ) steel channels. These channels are high-strength structural components, often called purlins, that are used as the primary framing support in roofs and walls for various types of buildings.
The machine automates the process of shaping flat steel coils into these precise, durable profiles, offering significant advantages in speed, accuracy, and consistency over manual fabrication methods.

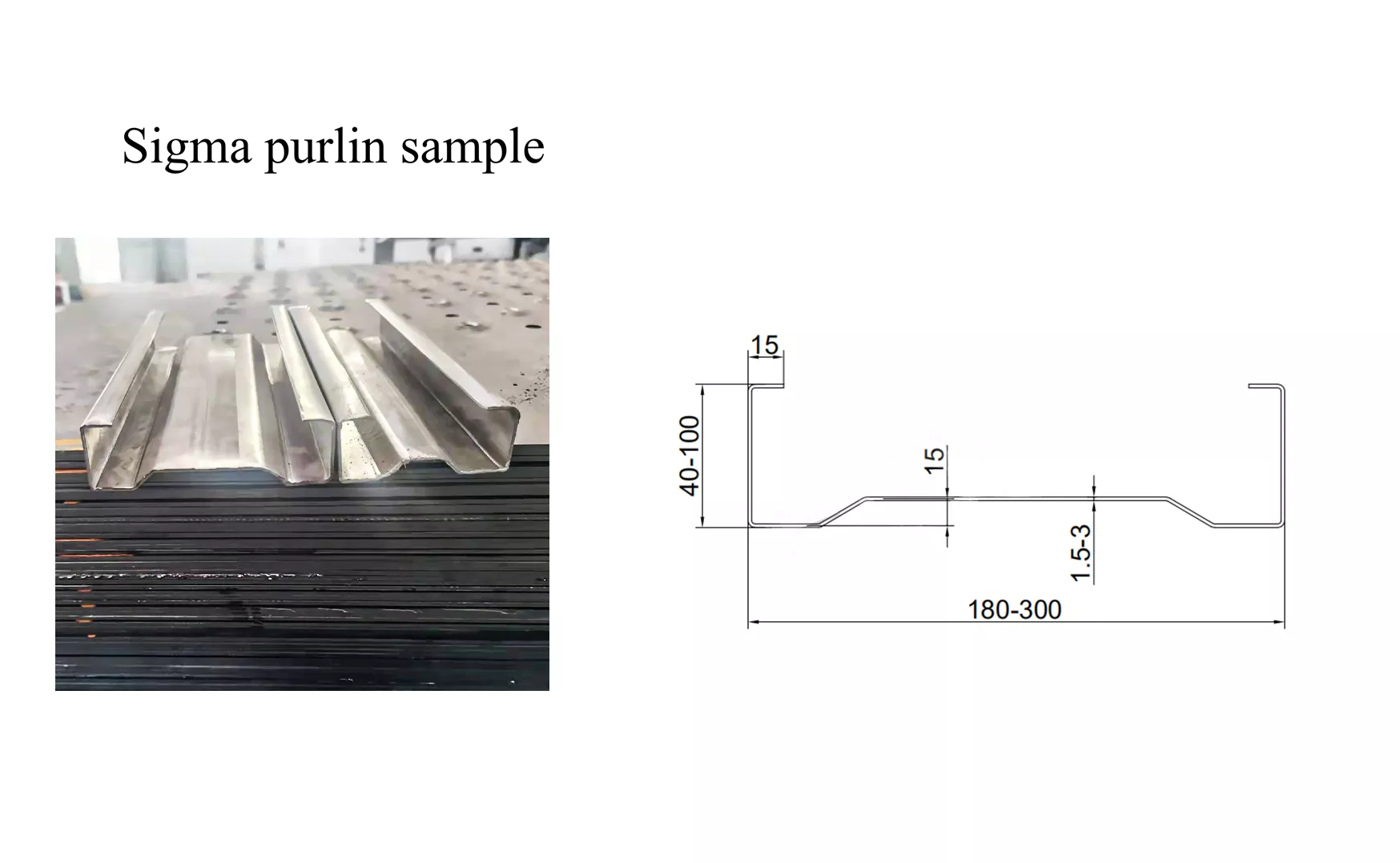

What does sigma channel roll forming machine produce?

The final product is a sigma-shaped steel channel. This profile looks like the Greek letter Σ (sigma) in cross-section. These are commonly used as:

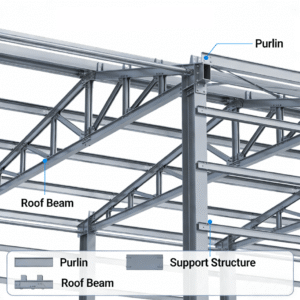

• Purlins: Horizontal structural members that support roofing and cladding in buildings.

• Framing Systems: Key components in the structural framework of warehouses, factories, and industrial buildings.

Main technical details of Star Rollforming purlin roll former

Machine components details

Application of purlin

RFQ

1. Why Choose Star Rollforming buying Sigma Channel Roll Forming Machine?
Star Rollforming stands out as a trusted name in roll forming industry, offering innovative, durable, and cost-effective machines. With more 25 years of expertise and a global customer base, the company ensures reliable after-sales support, training, and technical assistance. Choosing Star Rollforming guarantees efficiency and quality for your project. We not just make one machine, we form the future for our global customers.

2. How does sigma channel roll forming machine work?
The machine transforms a flat steel coil into a finished sigma channel through a continuous, multi-step process known as roll forming. A typical production line includes these stages:

• Material Loading & Uncoiling: A heavy steel coil is loaded onto a decoiler (or uncoiler), which holds and feeds the material into the production line.

• Flattening (Leveling): The steel strip passes through a leveler to ensure it is perfectly flat before forming begins.

• Punching (Optional): A punching unit can create pre-drilled holes, notches, or slots in the steel. This eliminates the need for a separate drilling step later, speeding up on-site assembly.

• Roll Forming: The flat steel strip is guided through a series of roller dies (typically 16-24 stations). Each station progressively bends the metal, gradually shaping it into the final sigma profile. This cold-forming process also work-hardens the steel, increasing its strength.

• Cutting to Length: A flying shear cuts the continuously moving formed channel to precise, pre-programmed lengths without stopping the production line.

• Finished Product Output: The completed sigma channels are carried away on a conveyor and can be automatically stacked for easy handling and packaging.

3. Key Features and Advantages of sigma channel roll forming machine
Modern sigma channel roll forming machines are sophisticated pieces of equipment with features designed for high performance:

• Automation and Control: They are equipped with Programmable Logic Controllers (PLC) and touchscreen interfaces. This allows operators to easily set production parameters like length, quantity, and punching patterns, and to store profiles for future use, ensuring consistent quality and quick changeovers.

• Precision and Speed: High-quality machines use durable components like hardened steel rollers (Star Rollforming uses Cr12mov. steel) and robust shafts to achieve high production speeds (e.g., 18-30 meters per min.) and tight tolerances (e.g., cut length accuracy of ±1mm).

• Versatility: Many machines are designed to be versatile. With interchangeable or adjustable tooling, the same machine can often produce other profiles like C and Z purlins, maximizing its usefulness for fabricators.

• Integrated Material Handling: The system automates the entire workflow from uncoiling to stacking, which minimizes manual handling, reduces labor costs, and lowers the risk of material damage or workplace injury.

4. Common Industrial Applications
You will typically find sigma channel roll forming machines used by:

• Pre-Engineered Building (PEB) Manufacturers for producing standardized, high-precision components that ensure quick and perfect on-site assembly.

• Metal Fabrication Workshops that need to meet diverse client demands for custom-shaped purlins and structural members.

• Large Construction Companies that produce their own framing to accelerate project timelines and reduce reliance on external suppliers.
