Strut channel roll forming machines or Solar mounting bracket roll forming machines are specialized equipment designed to produce bracket and U channels. These metal channels are widely used in construction, electric energy for various support systems, including cable trays, solar panel mounting, and HVAC installations.
Strut Channel Roll Forming Machine
Strut channel roll forming machines or Solar mounting bracket roll forming machines are specialized equipment designed to produce bracket and U channels. These metal channels are widely used in construction, electric energy for various support systems, including cable trays, solar panel mounting, and HVAC installations.

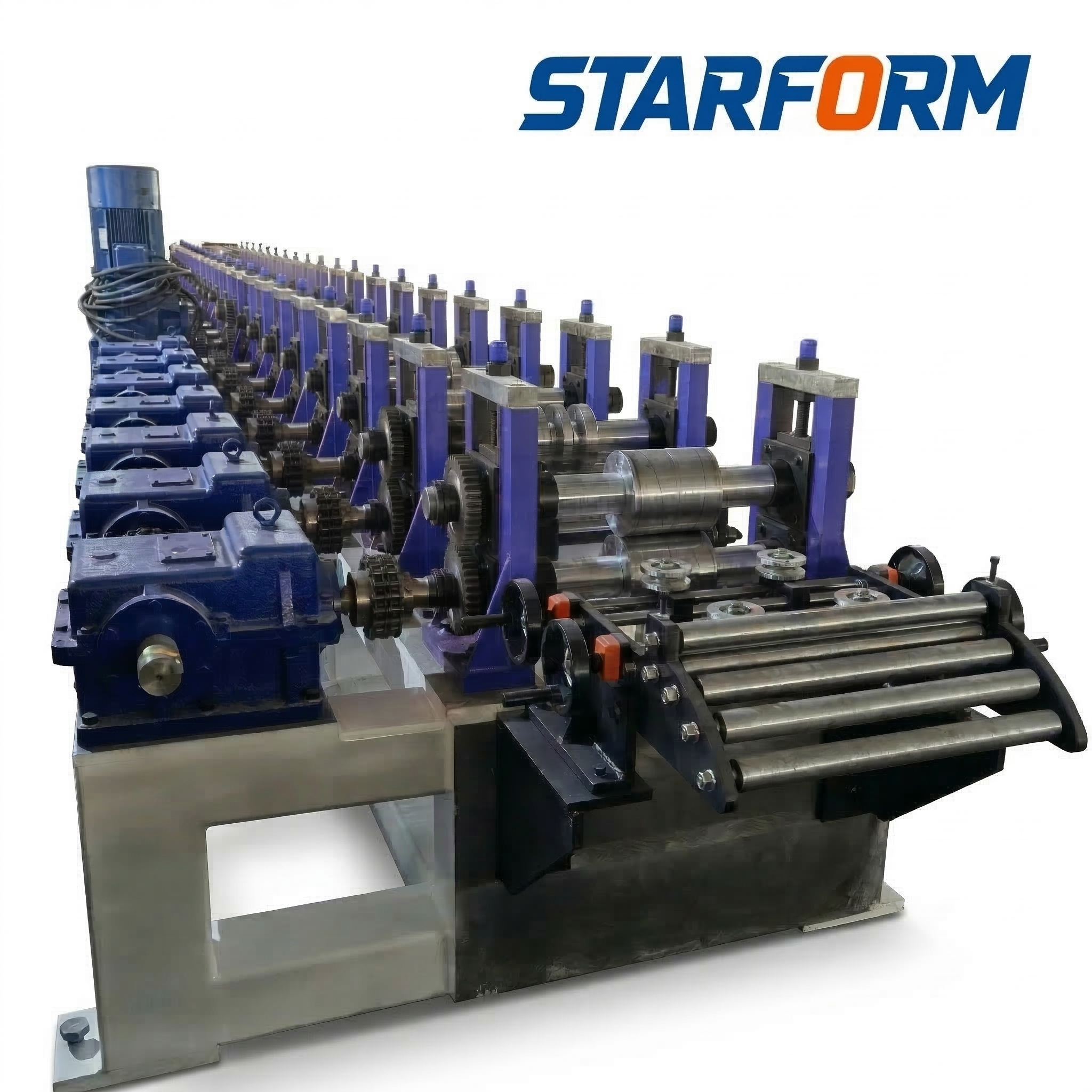

Components of a strut channel roll forming machine
A strut channel roll forming machine is a production line that transforms metal coils into finished strut channels. these machines are generally composed of several key systems that work together in sequence.
Its work process is following: Decoiler coils → feeding and leveling coils → punching → roll forming → cut to length → to run out table.
Main technical data of strut Channel Roll Forming Machine
| Parameter | Typical Specification | Details / Notes |
| Material Thickness | 1.5 mm – 2.5mm | Suitable for GI coils or cold rolled steel |
| Shaft Diameter | Φ80mm | Made of high-grade 45# steel, precision-ground |
| Roller Material | Cr12MOv. Steel | Heat treatment, hardness is 58-60HRC |
| Production Speed | About 6-7 m/min | Punching holes continue |
| Cutting Blade | Cr12MoV, Heat Treated | High-hardness material (58-60HRC) for long blade life and clean cuts |
| Cutting Tolerance | ±1mm | Precision of the finished sheet length |
| Control System | Mitsubishi PLC with Touch Screen | Allows for automatic control of length, quantity, and batch settings |

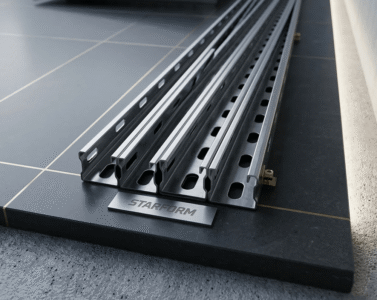

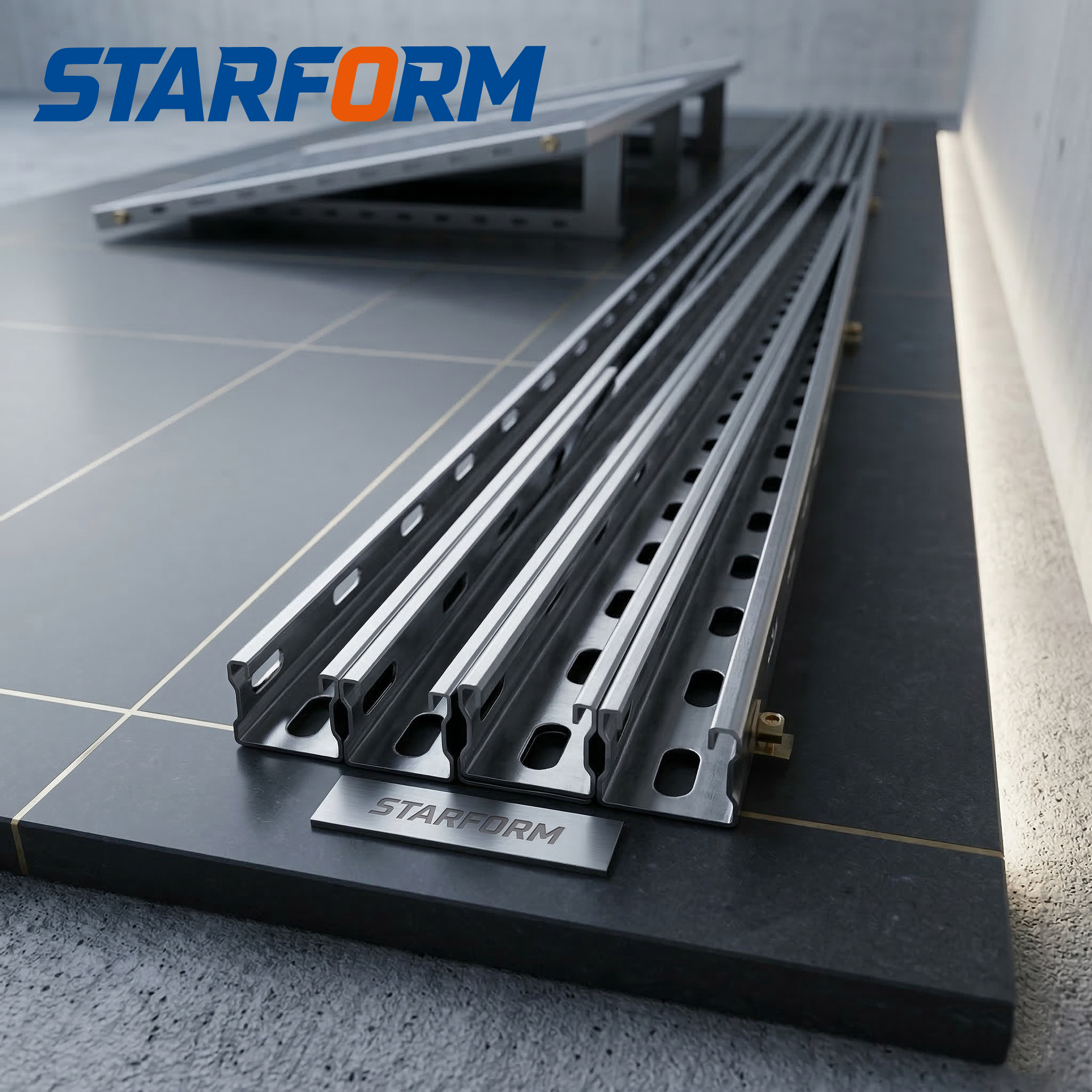

Production of Solar Strut roll forming machine

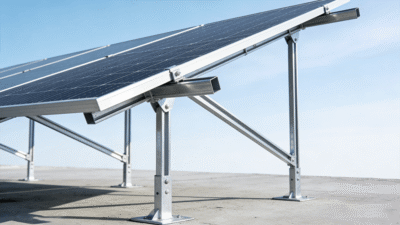

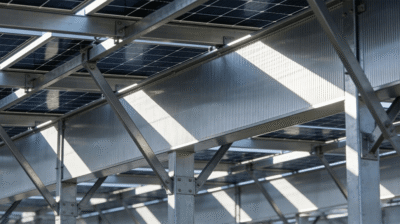

Application
