Glazed tile forming machine
Glazed tile forming machine

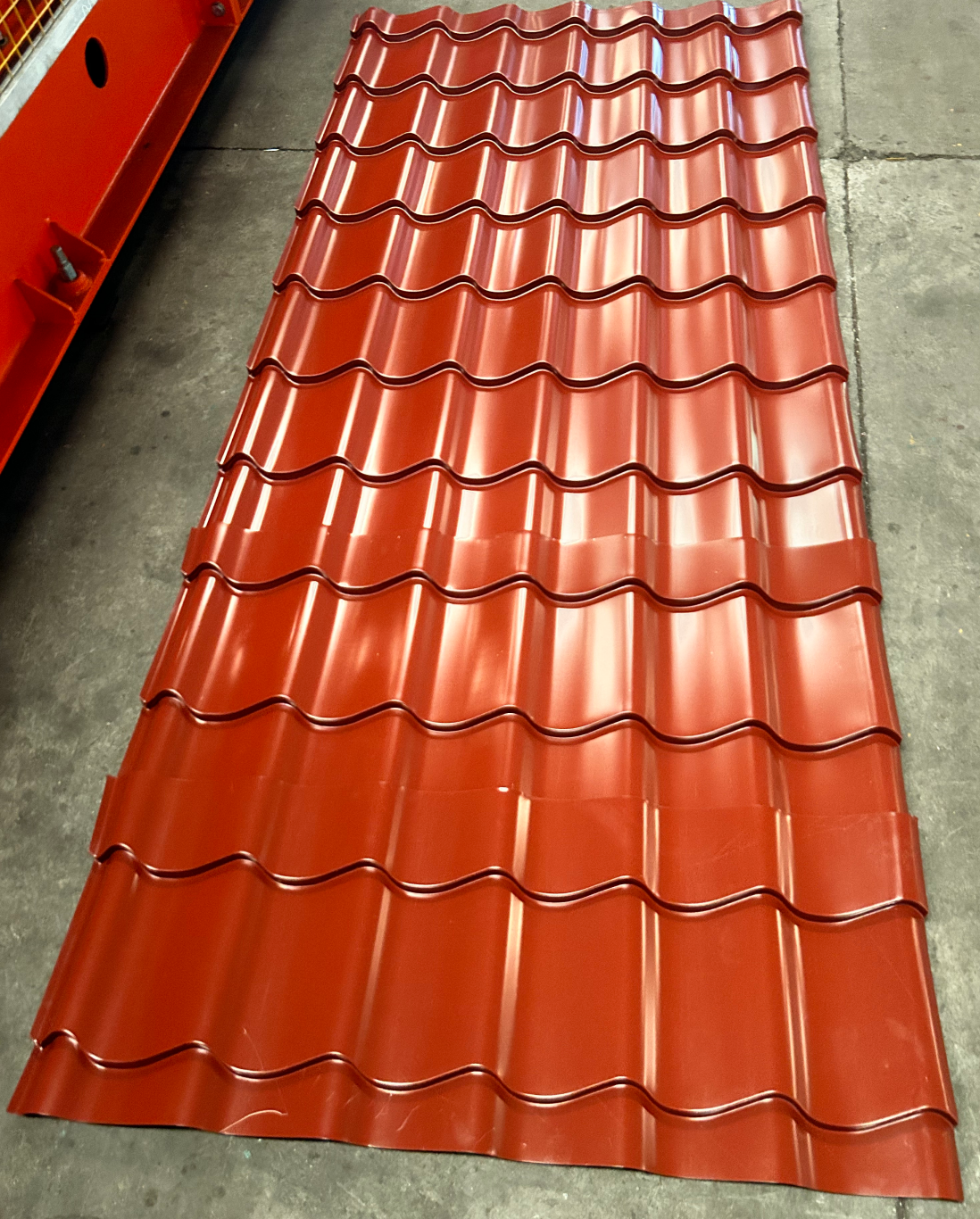

The step tile roll forming machine is a specialized industrial system designed to produce metal roofing tiles with a distinctive stepped profile. Its core function is to transform flat metal coils (like steel or aluminum) into finished, three-dimensional roofing sheets that offer the classic look of tiles combined with the durability of modern metal .

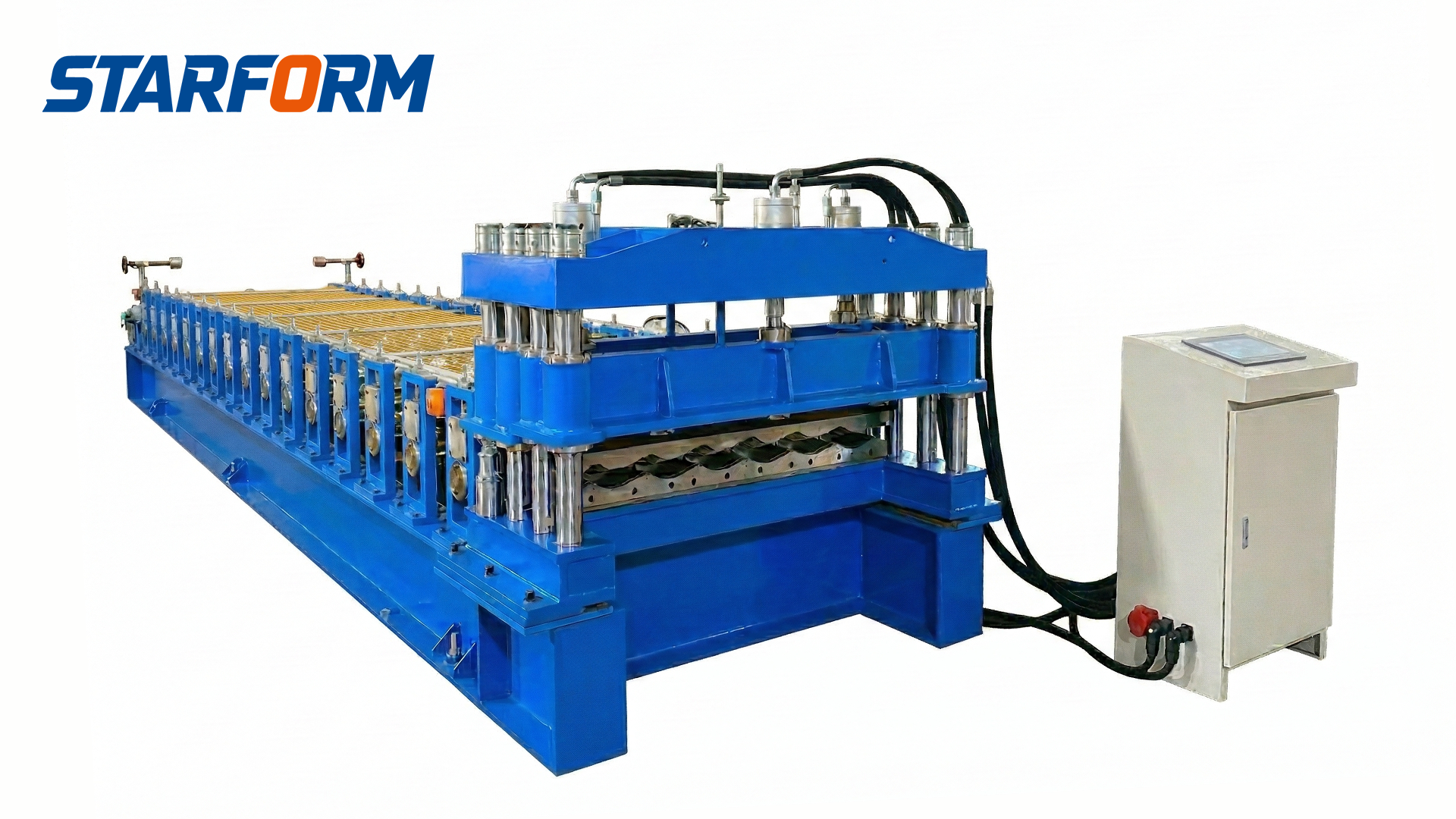

Glazed tile roll forming machine
Function of Glazed tile roll forming machine
The step tile roll forming machine is a specialized industrial system designed to produce metal roofing tiles with a distinctive stepped profile. Its core function is to transform flat metal coils (like steel or aluminum) into finished, three-dimensional roofing sheets that offer the classic look of tiles combined with the durability of modern metal .
Technical details of Glazed tile roll forming machine
| Parameter | Typical Specification | Details / Notes |
| Material Thickness | 0.4 mm – 0.6mm | Suitable for PPGI, aluminum coils, or color steel coils. |
| Forming Stations | 17 stations | Number of roller pairs that gradually shape the metal. |
| Shaft Diameter | Φ72 mm | Made of high-grade 45# steel, precision-ground. |
| Roller Material | 45# Forged Steel, Chrome Plated | Chrome plating (approx. 0.05mm) ensures smooth operation and corrosion resistance. |
| Forming Speed | About 6 m/min | Standard speed is 5-6m/min. |
| Cutting Blade | Cr12MoV , Heat Treated | High-hardness material (58-60HRC) for long blade life and clean cuts. |
| Cutting Tolerance | ±1mm | Precision of the finished sheet length. |
| Control System | Mitsubishi PLC with Touch Screen | Allows for automatic control of length, quantity, and batch settings. |
RFQ
- Why choose STARFORM to buy step tile roll forming machine?
STARFORM specializes in engineering roll forming machines tailored to your specific profile requirements. Our “one-stop-shop” approach streamlines the entire process—from design to delivery and beyond—saving you valuable time and reducing total cost of ownership.
- Why Use Glazed Tile Roll Forming Machine?
Investing in a step tile roll forming machine offers several practical advantages for manufacturers and builders:
High Production Efficiency: It enables the rapid production of large quantities of tiles, significantly reducing project lead times .
Design Flexibility: Modern machines are highly customizable. Manufacturers can produce precise profiles based on customer technical drawings, adapting to local market preferences and building codes .
Cost-Effectiveness: By automating production, it reduces labor costs and minimizes material waste. The resulting tiles are also lightweight, which can lower transportation and structural support costs .
Durability and Performance: The tiles are corrosion-resistant, weatherproof, and have a long lifespan (e.g., 40+ years for aluminum) . They are also suitable for various applications, including post-disaster reconstruction and green building projects due to aluminum’s recyclability .
In summary, the step tile roll forming machine efficiently automates the production of durable, stylish, and highly customizable metal roofing tiles, offering a versatile solution for modern construction needs.
