A Highway U-Shaped Guardrail Post Roll Forming Machine is specialized equipment used to continuously roll-form steel strips into U-shaped posts for highway barrier systems. its raw material thickness normally is between 3-5mm. It integrates processes such as uncoiling, leveling, punching, forming, and cutting, enabling efficient and precise production of U-posts used to secure guardrail panels and signage.
Highway U Post Roll Forming Machine
A Highway U-Shaped Guardrail Post Roll Forming Machine is specialized equipment used to continuously roll-form steel strips into U-shaped posts for highway barrier systems. its raw material thickness normally is between 3-5mm. It integrates processes such as uncoiling, leveling, punching, forming, and cutting, enabling efficient and precise production of U-posts used to secure guardrail panels and signage.
Product Parameters of highway U post roll forming machine
| Parameter | Specification | Details / Notes |
| Machinable Material | Galvanized Steel / Carbon Steel | Thickness: 3.0-5.0 mm Or According To Customer |
| Yield Strength | 250 – 350 Mpa | Or According To Customer requirement |
| Tensil Stress | G250 Mpa – G380 Mpa | – |
| Type | C Post, U post | – |
| Punching System | Automatic hydraulic Punching | – |
| Forming Station | About 15 Stations | – |
| Driving System | T-Box Gear transmission | – |
| Machine Structure | Forged Iron Station | – |
| Forming Speed | 0-20 (m/min.) | Difference according to different thickness |
| Rollers’ Material | Cr12Mov | – |
| Cutting System | Automatic post-cutting | – |
| Frequency Changer Brand | Mitsubishi | – |
| PLC Brand | Mitsubishi | – |
| Power | 380V 50Hz 3ph | Customize |
Machine details

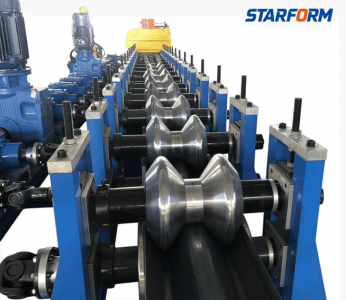

Forming system

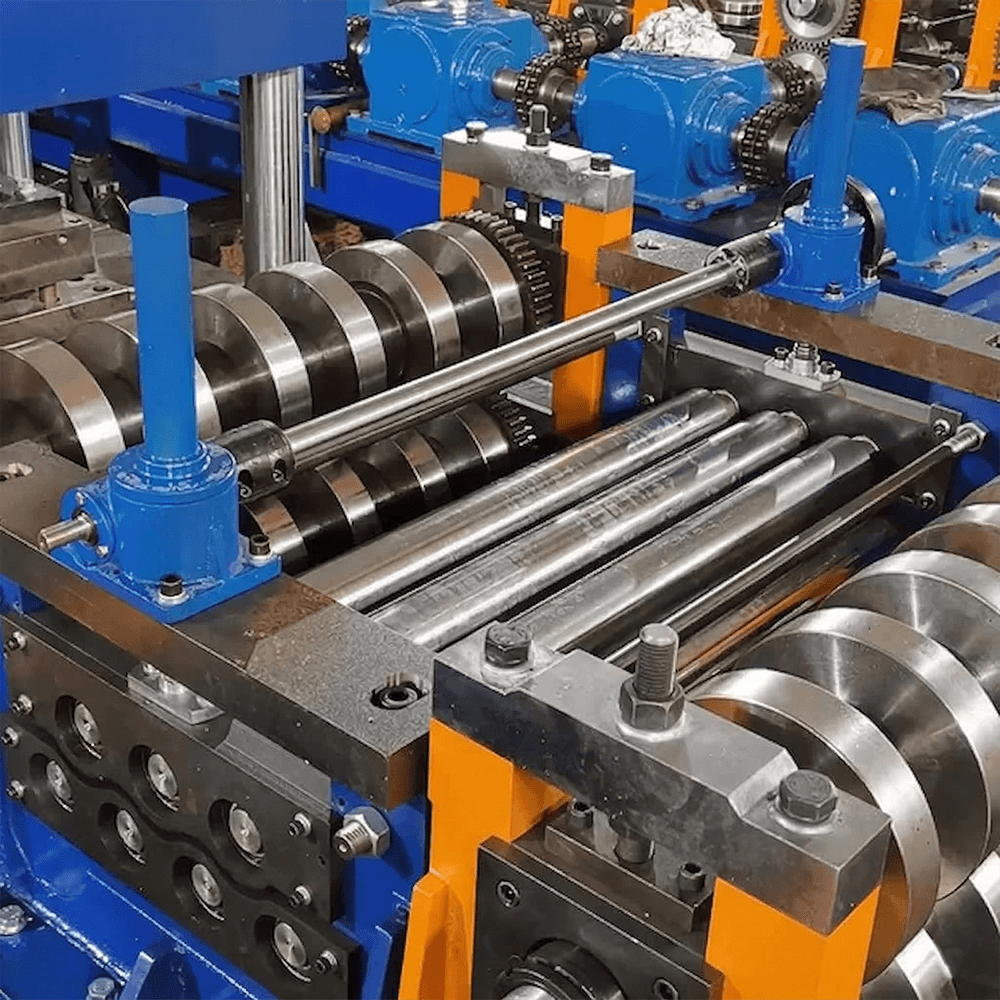

Rollers of highway U post machine

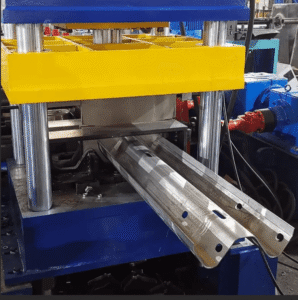

Automatic cutting system

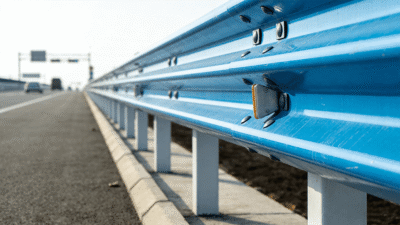

Application
