Upright roll forming machine
Upright roll forming machine

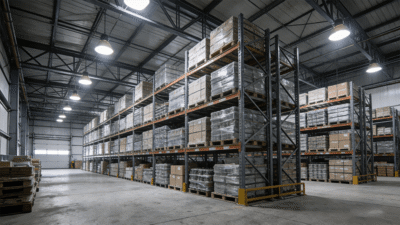

The Storage Upright Roll Forming Machine is a specialized of industrial equipment designed for the high-volume, precise manufacturing of storage system components, specifically vertical support columns known as uprights. These uprights are the primary load-bearing structures in pallet racks, drive-in racks, cantilever racks, and other heavy-duty storage systems used in warehouses, distribution centers, and industrial facilities. Also STARFORM can design and produce roll forming machines to make box beam, step beam and shelf panels. All these parts are components of Pallet racking system.

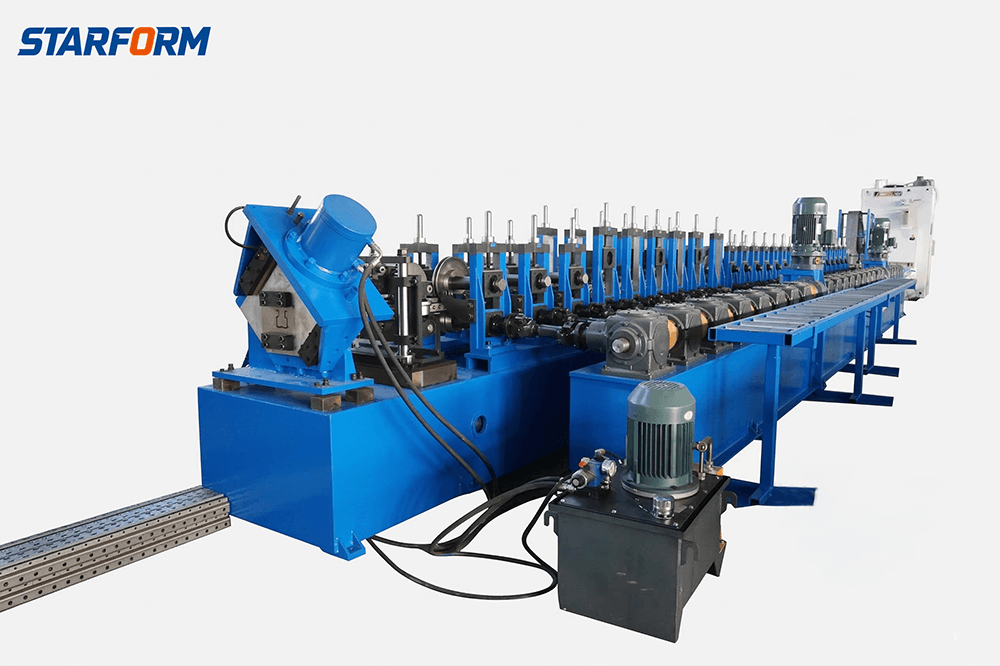

Storage Upright Roll Forming Machine
The Storage Upright Roll Forming Machine is a specialized of industrial equipment designed for the high-volume, precise manufacturing of storage system components, specifically vertical support columns known as uprights. These uprights are the primary load-bearing structures in pallet racks, drive-in racks, cantilever racks, and other heavy-duty storage systems used in warehouses, distribution centers, and industrial facilities. Also STARFORM can design and produce roll forming machines to make box beam, step beam and shelf panels. All these parts are components of Pallet racking system.
Technical details of Storage Upright Roll Forming Machine
| Machinable Material | Yield Strength | Forming Station |
| Galvanized Steel (1.5-2.5mm) | 250 – 380 Mpa | About 25 Stands (Customize) |
| Driving System | Machine Structure | Forming Speed |
| Chain Drive (T-box Gear optional) | Cast Iron Stands | 5-15 m/min (Customized) |
| Rollers’ Material | Cutting System | Brand (Freq, Inverter, Screen) |
| GCr 15 (Cr12Mov optional) | Automatic hydraulic cutting | Mitsubishi (Made in Japan) |

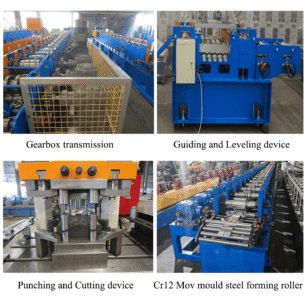

Machine details

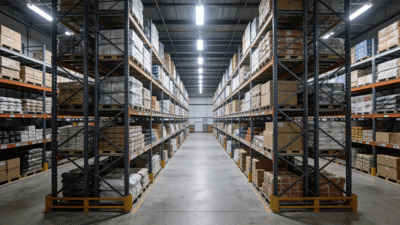

Application
RFQ
1. Advantages of Using a Storage Upright Roll Forming Machine
Investing in a dedicated roll forming line offers significant benefits for manufacturers:
High Production Efficiency: Capable of producing hundreds of meters of finished uprights per shift with minimal manual intervention.
Dimensional Accuracy and Consistency: Ensures every upright meets strict quality standards, which is vital for the structural integrity of a storage system. Components will fit together perfectly on site.

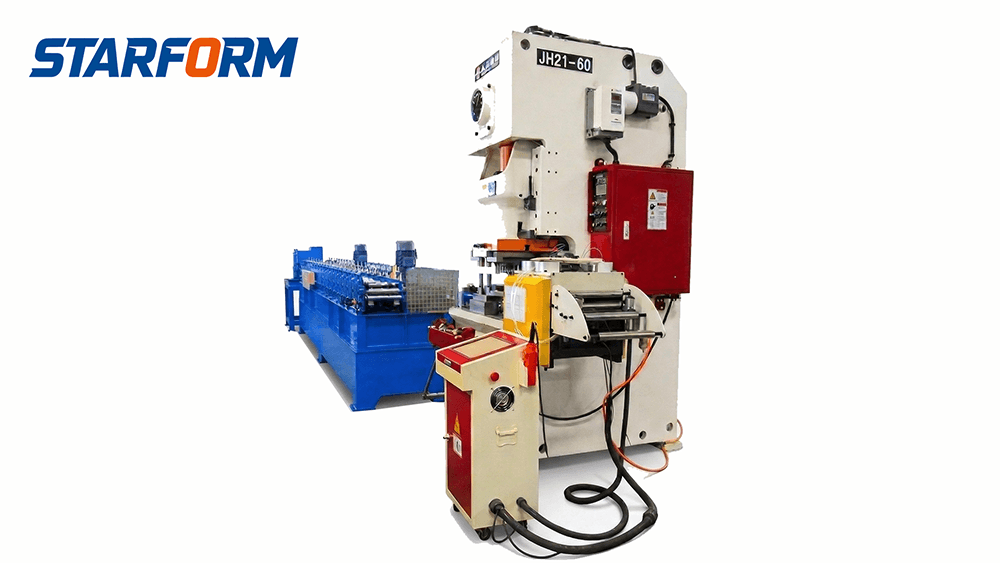

Material and Cost Savings: Reduces material waste compared to other manufacturing methods. By integrating punching inline, it eliminates secondary operations.
Flexibility: Quick changeover times allow manufacturers to produce different profiles and lengths on the same machine, responding rapidly to market demands.
Structural Integrity: The cold-forming process actually strengthens the steel, giving the upright a high strength-to-weight ratio.
