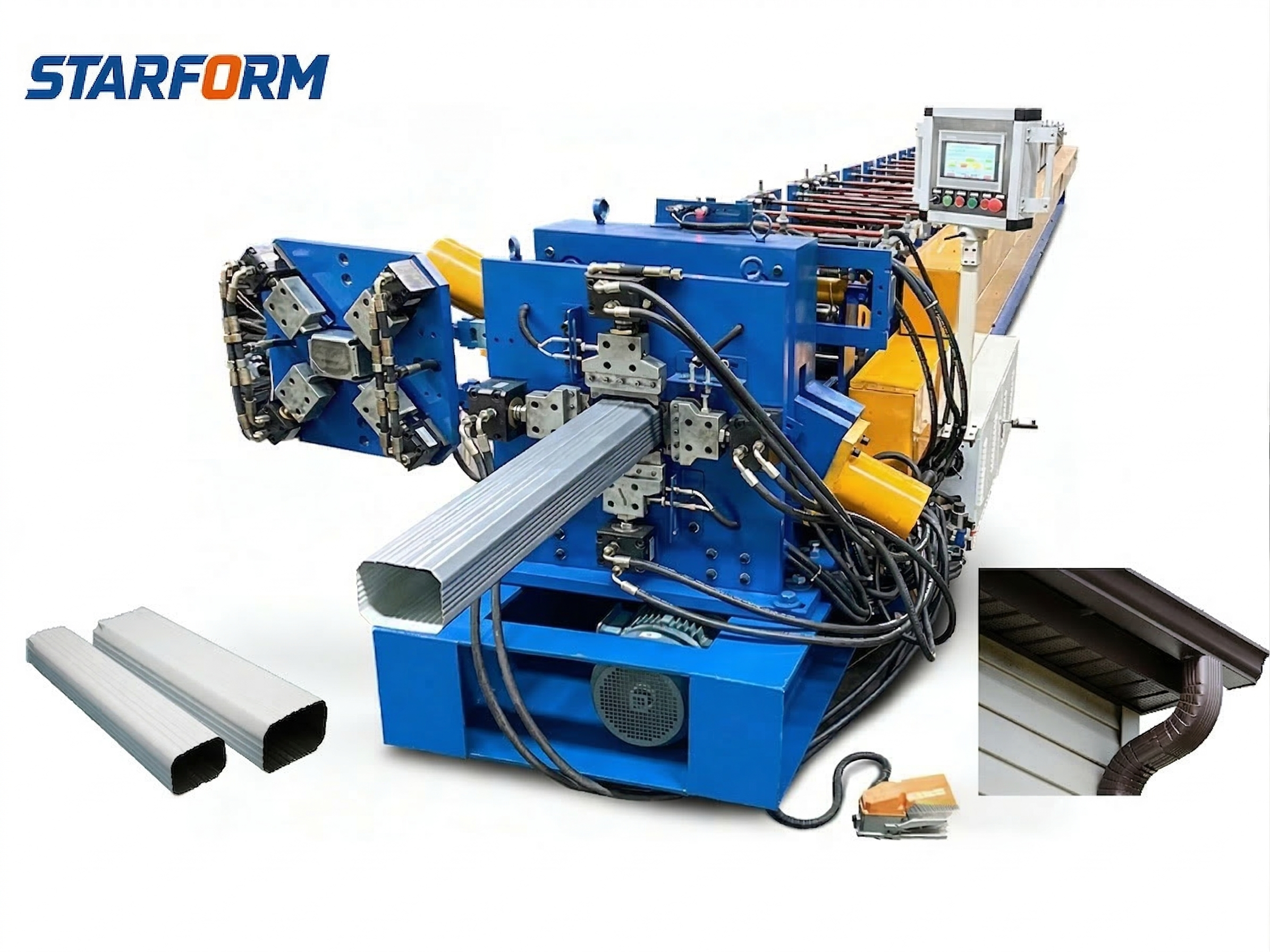

Downspout Pipe Roll Forming Machine

What is a Downspout Pipe Roll Forming Machine?

A downspout pipe roll forming machine is a specialized piece of industrial equipment used to manufacture downspouts (also known as downpipes or drain pipes) from metal coils. These machines use a continuous bending process called roll forming to gradually shape flat metal strips into the final pipe profile.

Key Components and Working Principle:

The machine operates as a continuous production line, typically consisting of the following key parts:

• Decoiler: Holds and uncoils the metal strip (e.g., galvanized steel, aluminum).

• Roll Forming System: The metal passes through a series of rollers. Each station progressively bends the metal until the desired shape, such as a square or round pipe, is achieved.

• Cutting System: Once formed, a hydraulic or pneumatic cutter cuts the continuous pipe to the pre-set length. This system is often controlled by a PLC (Programmable Logic Controller) for high precision.

• Run-Out Table: The finished pipes are collected for stacking and packaging.

Auxiliary Equipment:

Many systems also include a separate elbow making machine, which allows for the production of curved sections (elbows) needed for corners in a drainage system. STARFORM designs elbow making device together with main pipe roll forming system, save space for customers.

Machine details

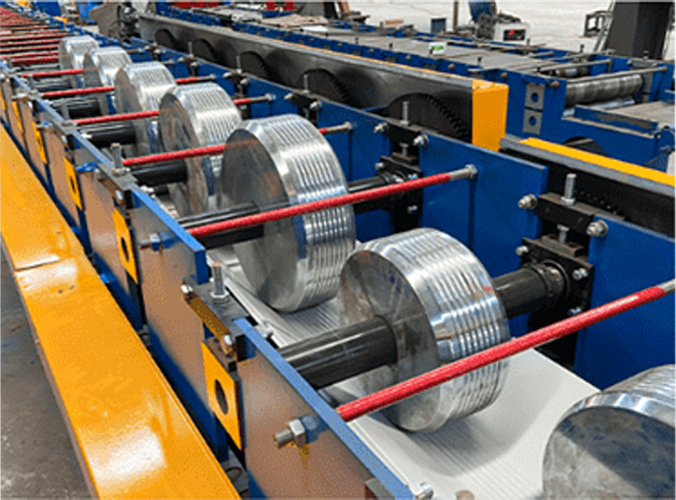

• Roll forming system

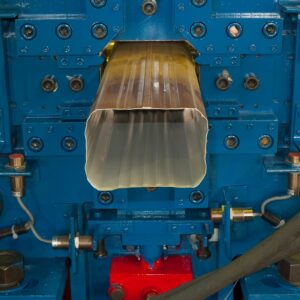

• Automatic cutting device

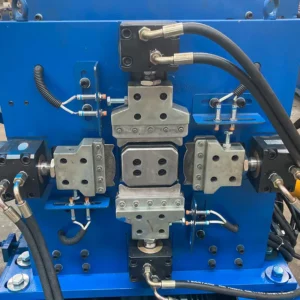

• Elbow making machine

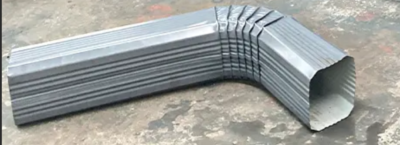

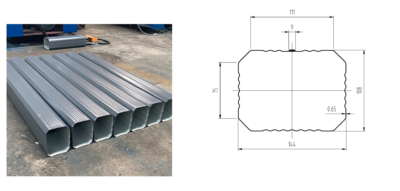

Production samples
