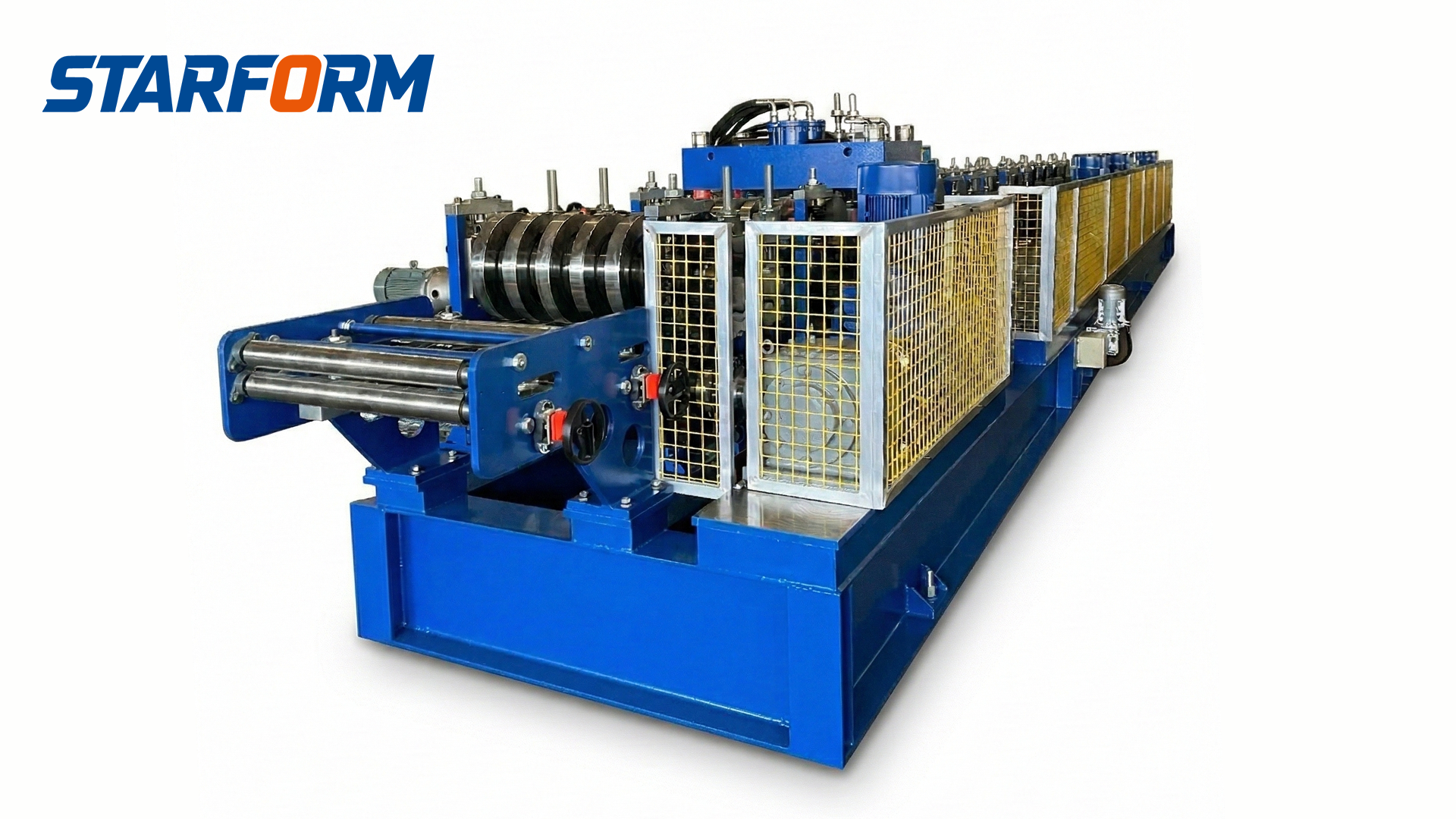

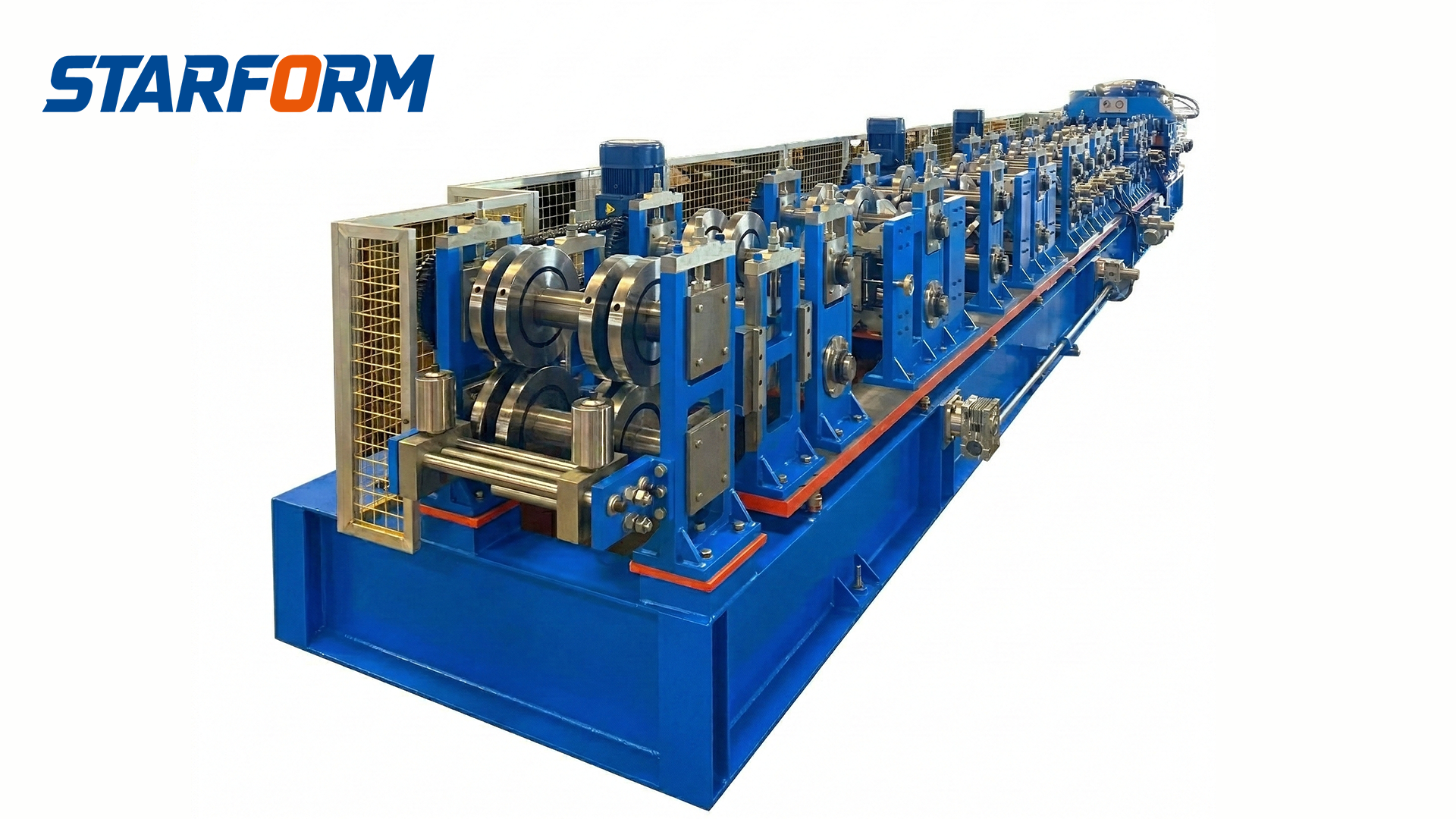

CZU Purlin Roll Forming Machine
CZU Purlin Roll Forming Machine
A CZU purlin roll forming machine is a versatile of industrial equipment designed to manufacture C, Z, and U-shaped steel purlins from metal coils . Its primary value is its ability to produce these three different profile types on a single machine, offering significant flexibility for steel structure fabrication.
CZU purlin roll forming machine
What is CZU purlin roll forming machine？
A CZU purlin roll forming machine is a versatile of industrial equipment designed to manufacture C, Z, and U-shaped steel purlins from metal coils. Its primary value is its ability to produce these three different profile types on a single machine, offering significant flexibility for steel structure fabrication.
Main technical details of Star Rollforming CZU purlin roll former
| GI coils | 1.5-4mm Optional | Bearings inside rollers |
| Product Material | Material Thickness | Forming advantage |
| ±1.0mm | Servo Motor Driven | Up to 30m/min |
| Precision | Drive System | Form speed |
| Mitsubishi PLC | Cr12MoV | Cr12MoV |
| Control System | Roller material | Cutter material |
| 24A-01 | T-box gear | Grade 8.8 |
| Chain standard | Transmission system | Screw bolts |

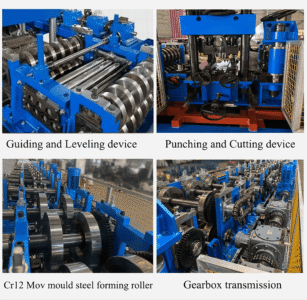

Machine details

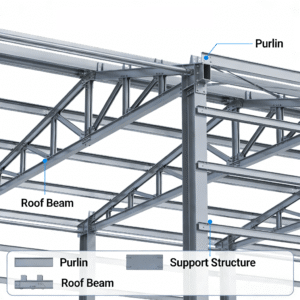

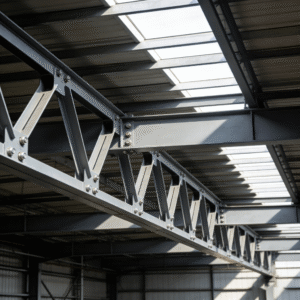

Application of purlin
RFQ

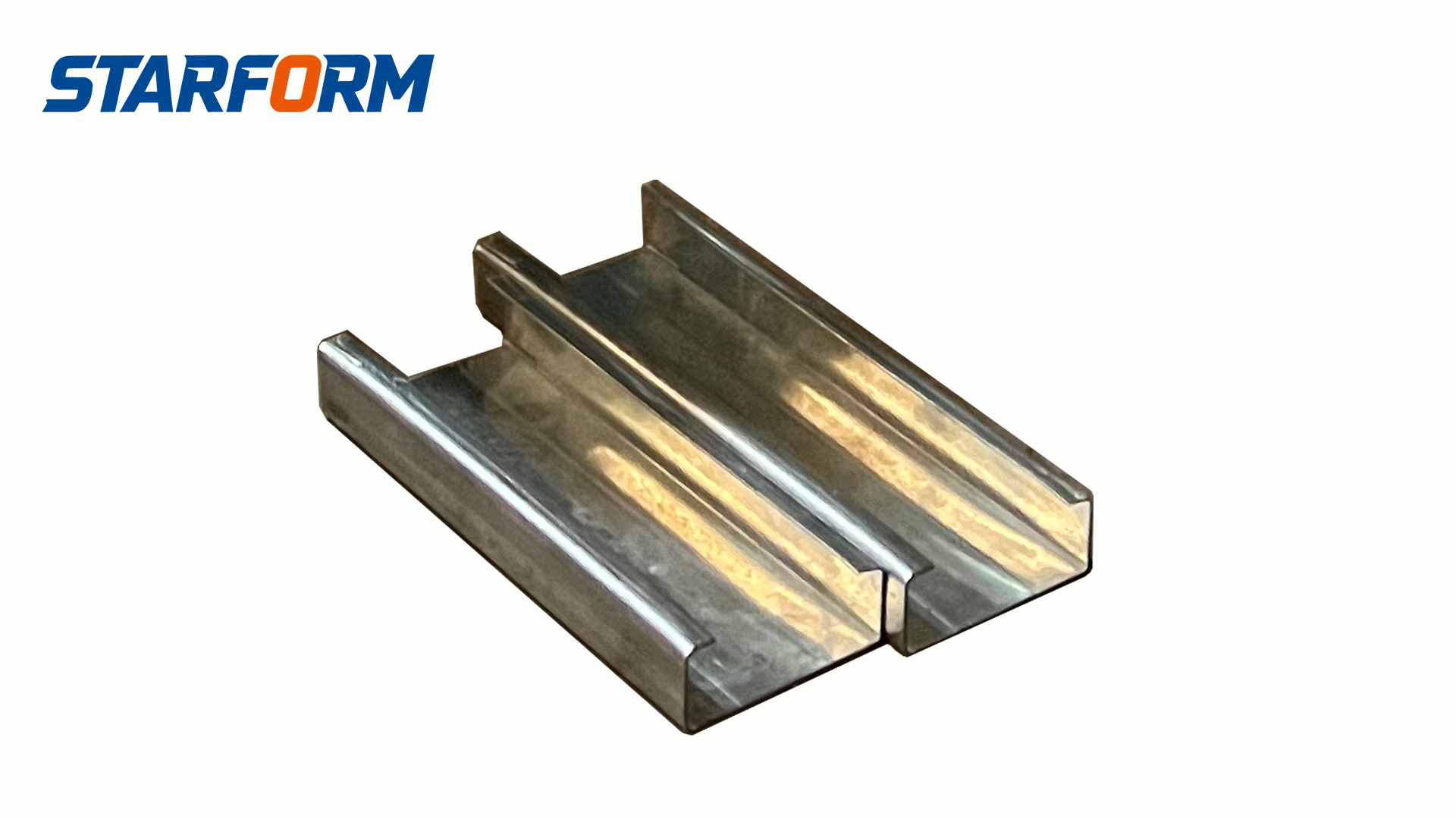

Common size of CZU purlin?
Normally the web size is 80-300mm, flange height is 40-90mm, Star Rollforming can design machine as per customers required sizes. Customize according to the client’s size requirements. No extra design cost to customers.
How to choose raw material thickness for a CZU purlin roll forming machine?
The thickness of purlin decides to use which kind of transmission , so it has relation of machine cost for buyers.
How to choose thickness for your CZU purlin? If you use machine in solar mounting system, normally its thickness between 1.2-2.0mm; if you use purlin for per-engineered building system, thickness mostly is 1.5-3.0mm. Some market like South America , they like thickness range 1.2-1.8mm for light purlin. But more buyers ask for heavy CU purlin like 4 or 5mm recently for heavy structure.
Applications of A CZU purlin roll forming machine?
You will typically find CZU purlin roll forming machines used by:
Pre-Engineered Building (PEB) Manufacturers for producing standardized, high-precision components for warehouses and factories.
Steel Service Centers and Fabricators that need to meet diverse client demands for various purlin types and sizes.
Construction Companies involved in large-scale projects like industrial sheds, agricultural buildings, and solar panel mounting structures.
