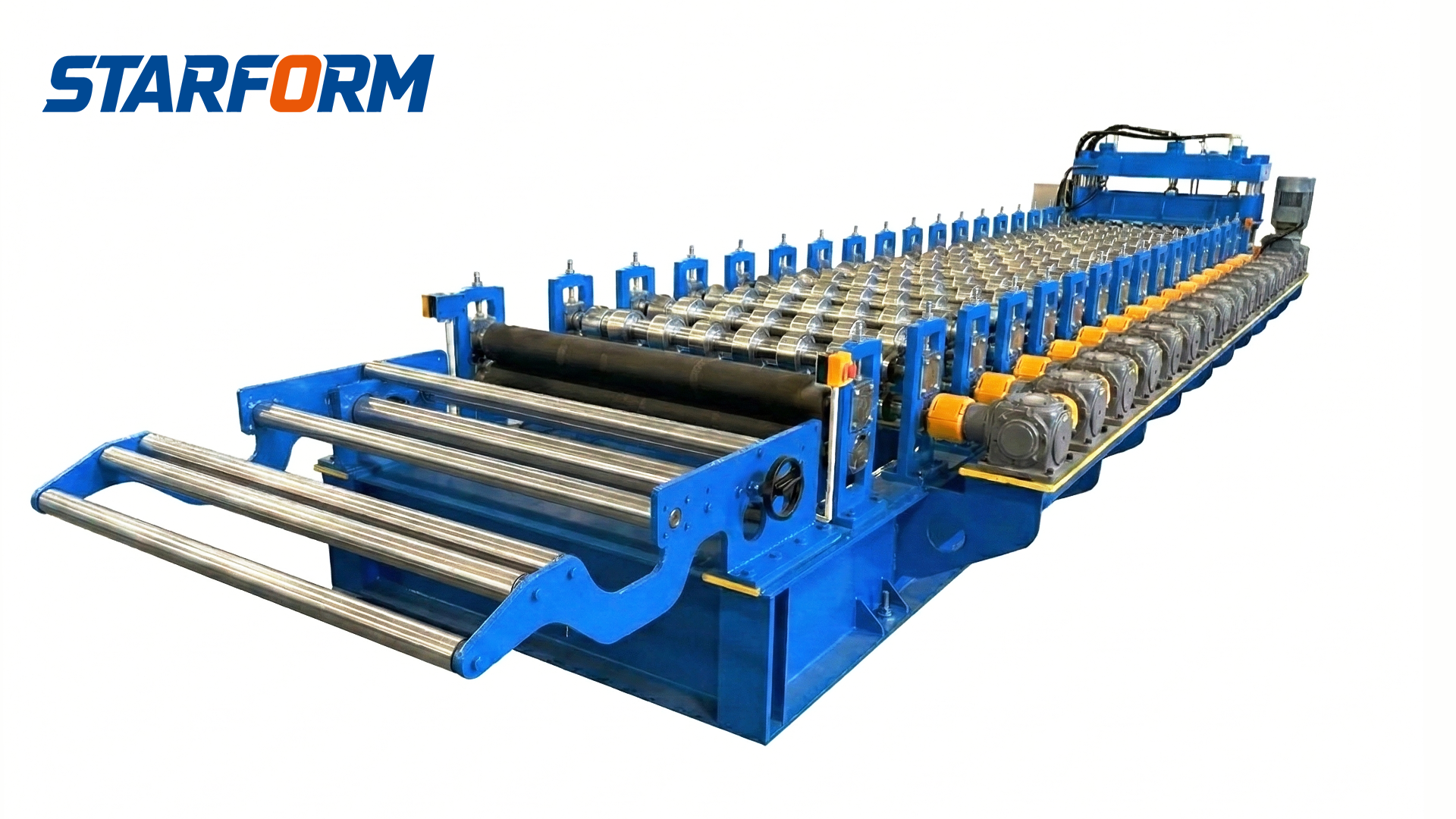

Metrocopo tile roll forming machine
Metrocopo tile roll forming machine
A metrocopo tile roll forming machine is a piece of industrial equipment designed to produce metal roofing tiles that mimic the classic look of clay tiles . It transforms flat metal coils into finished, three-dimensional “metrocopo” or “glazed tile” profiles through a continuous and automated process .
Metrocopo tile roll forming machine
Function of metrocopo tile roll forming machine
A metrocopo tile roll forming machine is a piece of industrial equipment designed to produce metal roofing tiles that mimic the classic look of clay tiles . It transforms flat metal coils into finished, three-dimensional “metrocopo” or “glazed tile” profiles through a continuous and automated process .
Technical data of metrocopo tile roll forming machine
| Parameter | Specification | Details / Notes |
| Suitable material | Color steel coils and aluminium coils | T=0.4-0.5mm |
| Working speed | About 6m/min | – |
| Step distance | Adjustable according to requirement | >=250mm |
| Power Requirement | Main motor: 5.5 Kw / Hydraulic: 5.5Kw | Depend on final design |
| Material of forming rollers | No.45 steel | Plated with chrome on surface |
| Material of cutter, pressing die | Cr12mov mould steel | With quench treatment, HRC58-60 |
| Material of shaft | High quality 45# steel | Roller grinder milling |
| Shaft diameter | 72mm | – |
| Transmission | T-box gear | – |
| Controlling system | Mitsubishi PLC & converter | Screen |
| Total weight of machine | About 11000KGS | – |
| Machine’s size | About 10.5 m × 2.1 m × 1.7 m | Depend on final design |
Metrocopo tile sample
RFQ
1. Why Use This Machine?
Investing in a metrocopo tile roll forming machine offers several advantages for manufacturers and builders:
High Production Efficiency: It can produce large quantities of tiles quickly (e.g., up to 2880 meters per 8-hour shift), significantly reducing project lead times .
Cost-Effectiveness: By automating production, it reduces labor costs and minimizes material waste, leading to lower overall production costs per tile .
Superior Product Quality: The precision engineering ensures that every tile is uniform and consistent, which leads to easier installation and a more professional-looking roof .
Durability: The resulting tiles are lightweight yet strong, offering excellent resistance to weather and a long lifespan with minimal maintenance .
In summary, the metrocopo tile roll forming machine efficiently and precisely automates the production of stylish and durable metal roofing tiles, offering a versatile and cost-effective solution for modern construction.
